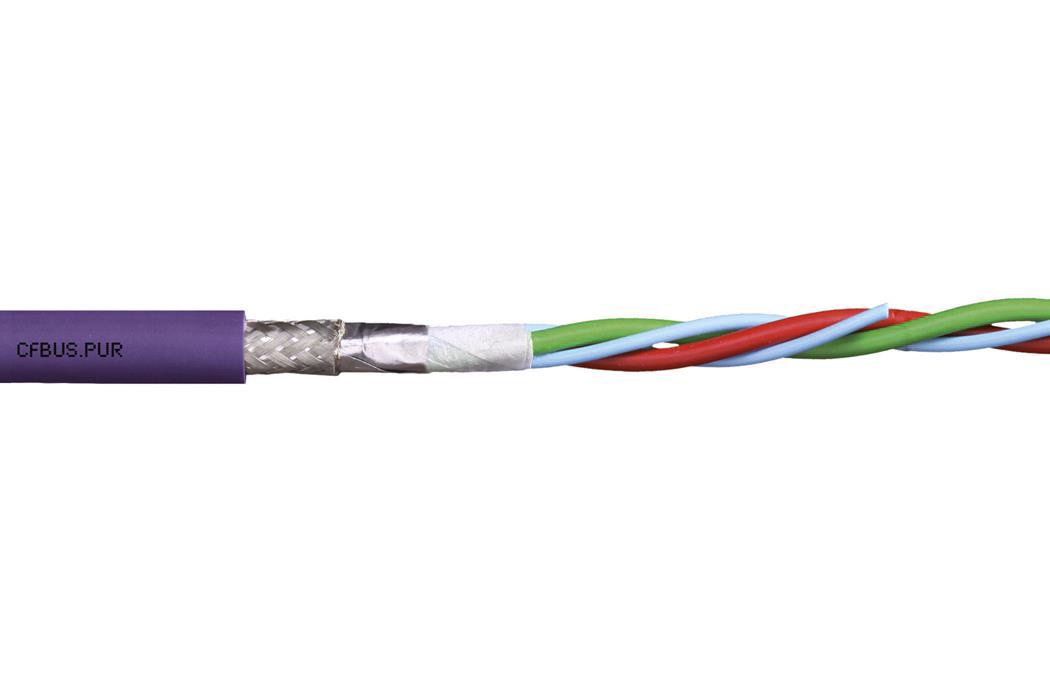

chainflex CFBUS bus cable PUR, Ethernet/

CFBUS-PUR-045 chainflex CFBUS bus cable PUR, Ethernet/
CFBUS.PUR.045
Igus

Product Information

Screened/Unscreened:
Screened
Earth Cable:
No
Conductor Resistance:
145 Ω/km
Oil Resistant:
Yes
Bedding Material:
PVC
American Wire Gauge:
26 AWG
Number of Cores:
8
Outer Diameter:
7.5mm
Standards Met:
CE, CEI 20-35, cRUus, CSA, CTP, DIN EN 50363-4-1, EAC, FT1, IEC 60332-1-2, NFPA 79, UL, VW-1
Cable Shape:
Multicore
Maximum Operating Temperature:
+70°C
Voltage Rating:
50 V
Minimum Bend Radius:
7 x D
Fire Behaviour:
Flame Retardant
Armoured:
No
Length:
25m
Sheath Material:
PUR
Current Rating:
2.5 A
Screen Type:
Tinned Copper Braid
Conductor Material:
Copper
Series:
chainflex CFBUS.PUR
Sheath Colour:
Purple
Cross Sectional Area:
0.15 mm²
Minimum Operating Temperature:
-20°C
Insulation Material:
TPE
RoHs Compliant
Checking for live stock

This is chainflex CFBUS bus cable PUR Ethernet/ manufactured by Igus. The manufacturer part number is CFBUS.PUR.045. Screen Options - screened. It has an earth cable included no . The conductor has 145 ω/km resistance. Additionally, it is oil resistant yes . It bedding is made up of pvc material . Features 26 awg - American Wire Gauge. The product consists of 8 cores. Its outer diameter is 7.5mm. The product complies with all safety standards, such as ce, cei 20-35, cruus, csa, ctp, din en 50363-4-1, eac, ft1, iec 60332-1-2, nfpa 79, ul, vw-1. Moreover, this cable has a multicore shape. It has a maximum operating temperature of +70°c. Moreover, the product has a nominal 50 v voltage rating. It bears 7 x d of minimum bend radius. The product has a flame retardant fire behaviour. It is armoured no . Its accurate length is 25m. The sheath is constructed from durable and adorable pur material. The product has a current rating of 2.5 a. It has a/an tinned copper braid type screen . The conductor is made from copper material. The product chainflex cfbus.pur, is a highly preferred choice for users. The sheath has an adorable purple colour. The product has 0.15 mm² cross section area. Whereas, the minimum operating temperature of the product is -20°c. It has a robust tpe insulation material.

pdf icon
Cable Selection Guide(Technical Reference)
pdf icon
Datasheet CFBUS.PUR.045(Technical Reference)
