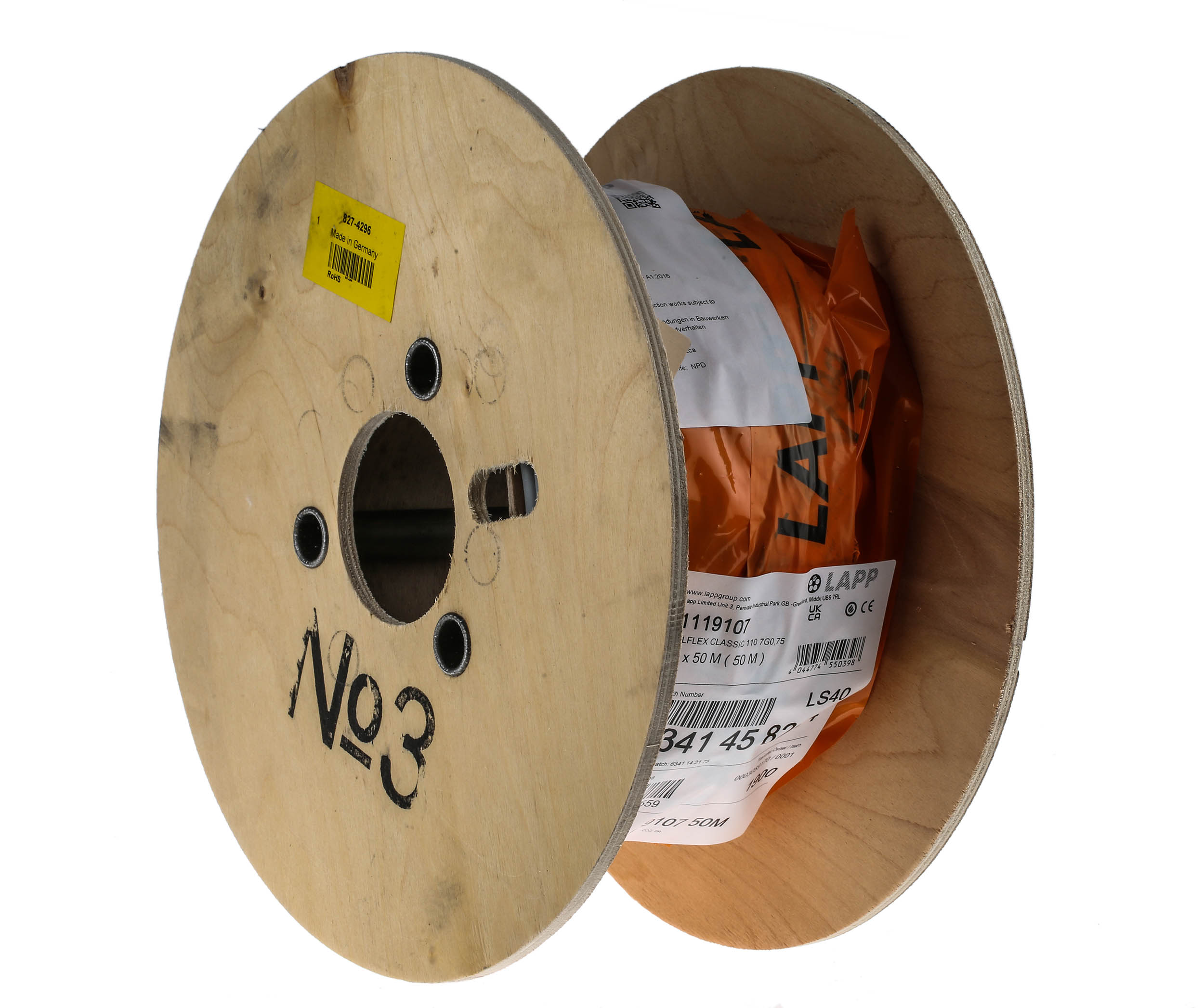

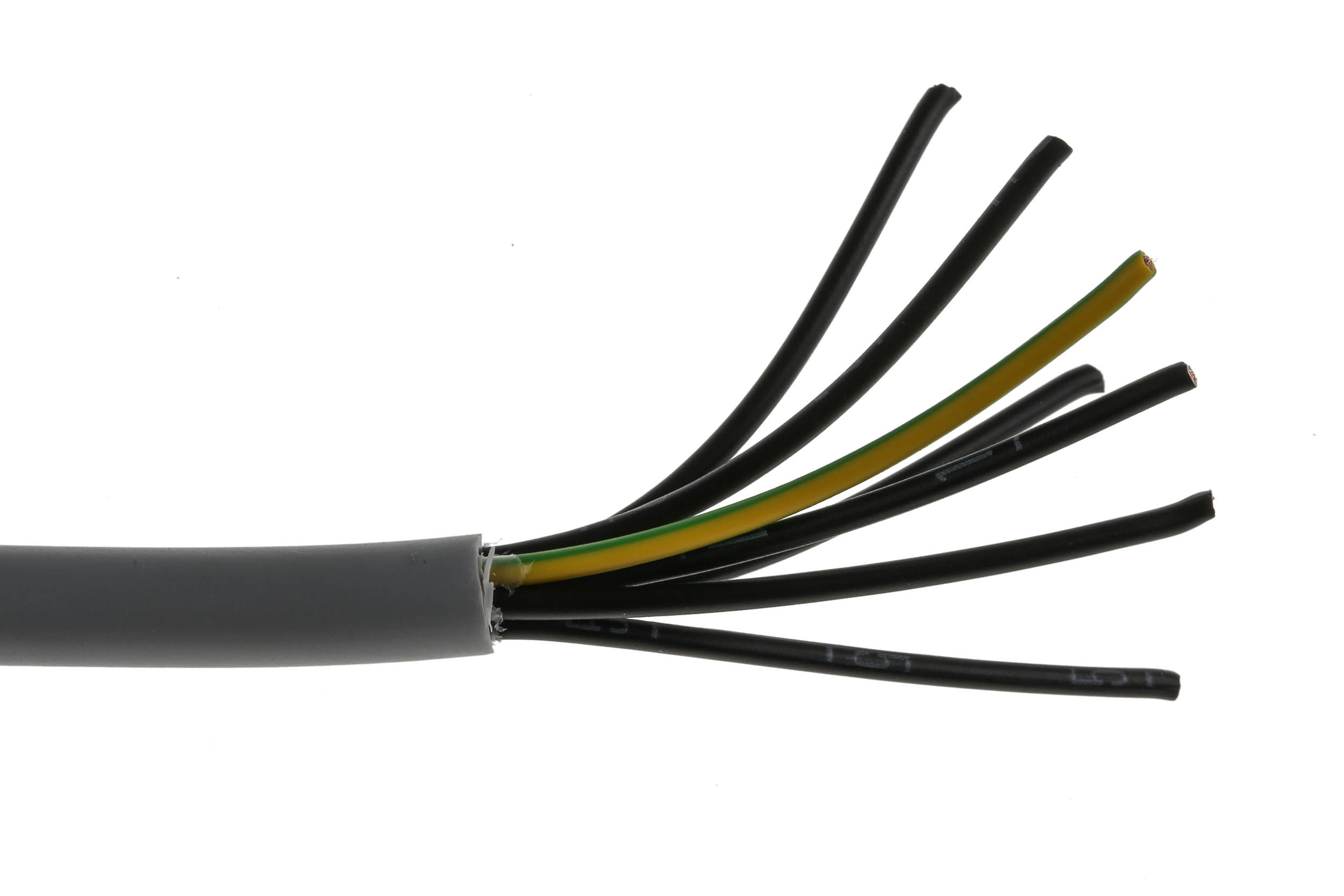

This is YY 7 Core YY Control Cable 0.75 mm² 50m Unscreened manufactured by RS Pro. The manufacturer part number is 827-4296. Features 18 awg - American Wire Gauge. It has an earth cable included yes . The conductor has 26 ω/km resistance. Additionally, it is oil resistant yes . Screen Options - unscreened. The product consists of 7 cores. Its outer diameter is 7.3mm. The sheath is constructed from durable and adorable pvc material. The core strands are 24/0.2 mm. It has a maximum operating temperature of +80°c. The product has 0.75 mm² cross section area. Moreover, the product has a nominal 300/500 v voltage rating. It bears fixed - 4 x d, occasional flexing - 15 x d of minimum bend radius. Its accurate length is 50m. The product has a current rating of 12 a. It includes yy type control cable . The conductor is made from bare copper material. The sheath has an adorable grey colour. Its filler material is non-wicking filler . Whereas, the minimum operating temperature of the product is (dynamic) -30 °c, (static) -40°c. It has a robust pvc insulation material.
For more information please check the datasheets.
