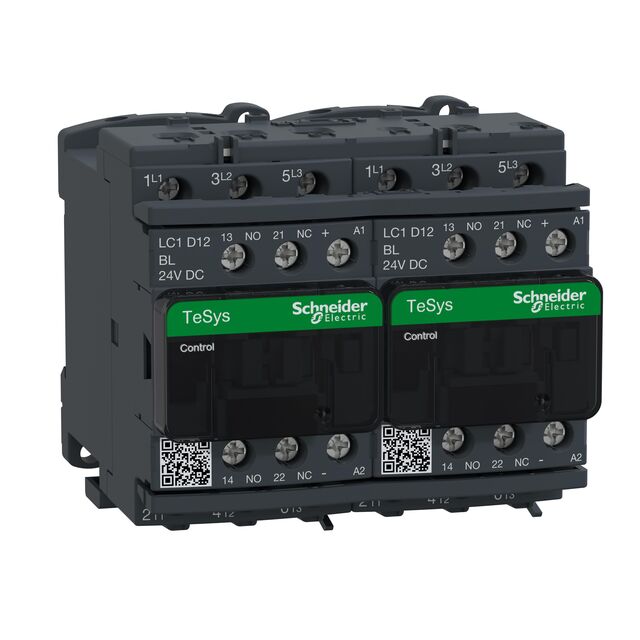

Schneider Electric Tesys D LC2D 3 Pole Contactor, 3NO, 12 A, 5.5 kW, 24 V dc Coil

LC2D12BL Schneider Electric Tesys D LC2D 3 Pole Contactor, 3NO, 12 A, 5.5 kW, 24 V dc Coil
LC2D12BL
LC2D12BL
Schneider Electric

Product Information

Function:
Reversing
Better World Verification:
Green Premium
Better World Product:
Yes
Maximum Operating Temperature:
+50°C
Contact Current Rating:
12 A
Series:
LC2D
Minimum Operating Temperature:
-25°C
Coil Voltage:
24 V dc
Length:
77mm
Width:
90mm
Depth:
95mm
Number Of Auxiliary Contacts:
2
Normal State Configuration:
3NO
Range:
TeSys D
Power Rating:
5.5 kW
Contact Voltage Rating:
690 V ac
Number of Poles:
3
Terminal Type:
Screw
Coil Voltage:
24VDC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 60°C
Coil Resistance:
-
title:
LC2D12BL
Coil Power:
-
Must Operate Voltage:
19.2 VDC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
88.55 ms
Must Release Voltage:
2.4 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
25 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC, 300VDC - Max
Release Time:
30 ms
Packaging:
Box
Contact Material:
-
RoHs Compliant
Checking for live stock

This is Tesys D LC2D 3 Pole Contactor 3NO 12 A 5.5 kW 24 V dc Coil manufactured by Schneider Electric. The manufacturer part number is LC2D12BL. It performs basic function of reversing. Better World Verification Options - green premium. Is it a better world product? yes. It has a maximum operating temperature of +50°c. The rated contact current is 12 a. The product lc2d, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -25°c. The coil voltage of the product is 24 v dc. Its accurate length is 77mm. Furthermore, the product is 90mm wide. The product comes in 95mm depth. It is composed of [Number of Auxiliary Contacts] auxiliary contacts. The normal state configuration includes 3no. It features tesys d range. Feature 5.5 kw of power rating. The integrated contact has 690 v ac of voltage rating. It has equipped with 3 poles. The terminal is a screw type. The coil voltage of the product is 24vdc. Moreover, it has screw terminal terminal style. The product has -40°c ~ 60°c operating temperature range. On the other hand, 19.2 vdc is the given crucial/must operating voltage. The schneider electric's product offers user-desired applications. It also has a 3pst-no (3 form a) contact form. The operating time of the product is 88.55 ms. While the must release voltage is a 2.4 vdc. It has a long 5 weeks standard lead time. It has a contact current rating of 25 a. The splendid features of the product include auxiliary contacts. The product is available in chassis mount, din rail configuration. The product tesys, is a highly preferred choice for users. The product's switching voltage is 690vac, 300vdc - max. While 30 ms is its release time. In addition, box is the available packaging type of the product.

pdf icon
Product Environmental Profile(Technical Reference)
pdf icon
Product Change Notice (PCN)(Technical Reference)
pdf icon
Datasheet LC2D12BL(Technical Reference)
