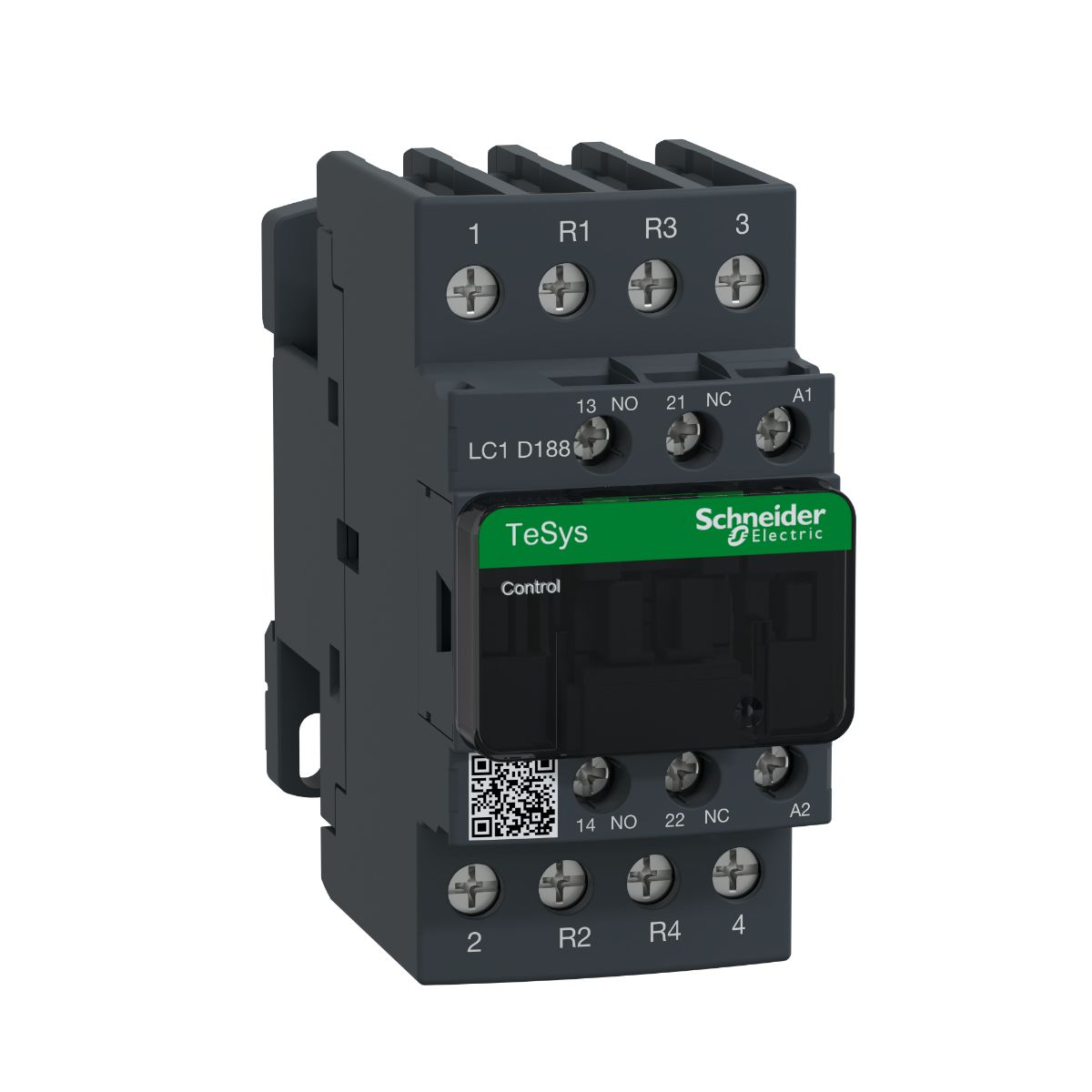

Schneider Electric Tesys D LC1D 4 Pole Contactor, 2NO/2NC, 18 A, 110 V ac Coil

LC1D188F7 Schneider Electric Tesys D LC1D 4 Pole Contactor, 2NO/2NC, 18 A, 110 V ac Coil
LC1D188F7
Schneider Electric

Product Information

Coil Voltage:
110 V ac
Pole and Throw Configuration:
4P
Width:
45mm
Range:
TeSys D
Function:
Load Control
Load Current:
32A
Contact Current Rating:
32 A
Maximum Operating Temperature:
+60°C
Load Voltage:
440V ac
3D Model:
https://www.traceparts.com/els/rs-components/en/api/viewer/3d?SupplierID=RS_COMPONENTS&PartNumber=28238&DisplayLogo=False
Control Voltage:
110 V ac
Length:
91mm
Better World Verification:
Green Premium
Better World Product:
Yes
Series:
LC1D
Depth:
99mm
Terminal Type:
Screw
Mounting Style:
DIN Rail Mount
Number Of Auxiliary Contacts:
2
Normal State Configuration:
2NO + 2NC
Auxiliary Contact Configuration:
1NO + 1NC
Contact Voltage Rating:
690 V ac
Number of Poles:
4
Minimum Operating Temperature:
-40°C
Checking for live stock

This is Tesys D LC1D 4 Pole Contactor 2NO/2NC 18 A 110 V ac Coil manufactured by Schneider Electric. The manufacturer part number is LC1D188F7. The coil voltage of the product is 110 v ac. It has 4p pole and throw configuration. Furthermore, the product is 45mm wide. It features tesys d range. It performs basic function of load control. It has a typical 32a load current. The rated contact current is 32 a. It has a maximum operating temperature of +60°c. Additionally, it can withstand 440v ac load voltage . It has 110 v ac control voltage . Its accurate length is 91mm. Better World Verification Options - green premium. Is it a better world product? yes. The product lc1d, is a highly preferred choice for users. The product comes in 99mm depth. The terminal is a screw type. The product is available in din rail mount style. It is composed of [Number of Auxiliary Contacts] auxiliary contacts. The normal state configuration includes 2no + 2nc. In addition, it has a standard 1no + 1nc auxiliary contact configuration . The integrated contact has 690 v ac of voltage rating. It has equipped with 4 poles. Whereas, the minimum operating temperature of the product is -40°c.

pdf icon
Green Premium - Product Environmental Profile(Technical Reference)
pdf icon
LC1D188F7 Data Sheet(Technical Reference)
pdf icon
Instruction Sheet - LC1Dxx3 Series(Technical Reference)
pdf icon
UL E164862(Technical Reference)
pdf icon
CSA 43364(Technical Reference)
pdf icon
Catalog 2023(Technical Reference)
pdf icon
Product Change Notice (PCN)(Technical Reference)
