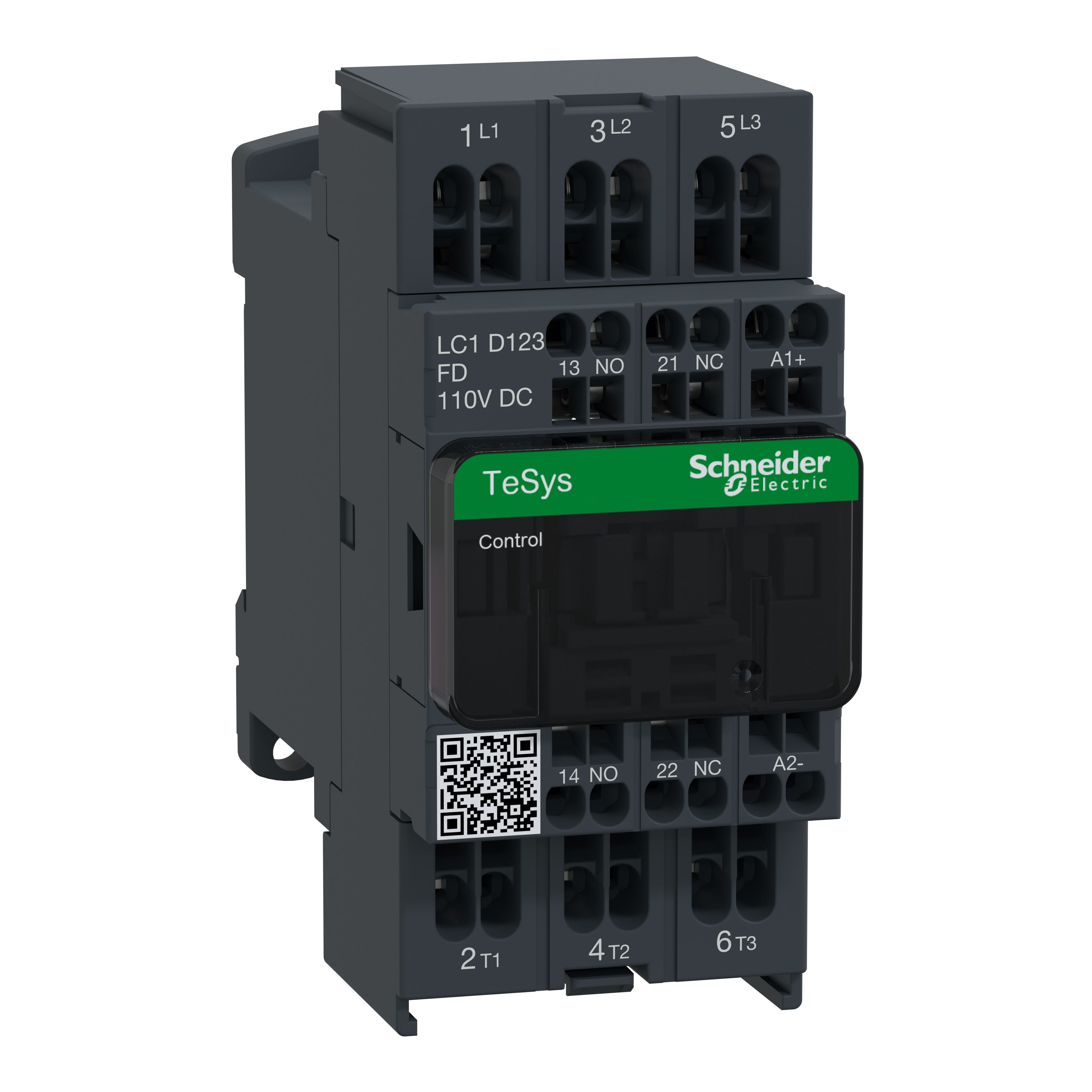

Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 16 A, 7.5 kW, 110 V dc Coil

LC1D123FD Schneider Electric Tesys D LC1D 3 Pole Contactor, 3NO, 16 A, 7.5 kW, 110 V dc Coil
Schneider Electric

Product Information

Better World Verification:
Green Premium
Better World Product:
Yes
Maximum Operating Temperature:
+60°C
Contact Current Rating:
16 A
Series:
LC1D
Minimum Operating Temperature:
-5°C
Coil Voltage:
110 V dc
Length:
99mm
Width:
45mm
Depth:
95mm
Normal State Configuration:
3NO
Range:
TeSys D
Power Rating:
7.5 kW
Contact Voltage Rating:
300 V dc, 690 V ac
Number of Poles:
3
Terminal Type:
Cable
Coil Voltage:
110VDC
Termination Style:
Spring Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
Switching Voltage:
690VAC, 300VDC - Max
Coil Power:
-
Must Operate Voltage:
77 VDC
Manufacturer:
Schneider Electric
Contact Form:
3PST-NO (3 Form A)
Operate Time:
72.45 ms
Must Release Voltage:
11 VDC
standardLeadTime:
5 Weeks
Contact Rating (Current):
12 A
Features:
Auxiliary Contacts, Suppressor
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Release Time:
24 ms
Packaging:
Box
Contact Material:
-
Checking for live stock

This is Tesys D LC1D 3 Pole Contactor 3NO 16 A 7.5 kW 110 V dc Coil manufactured by Schneider Electric. The manufacturer part number is LC1D123FD. Better World Verification Options - green premium. Is it a better world product? yes. It has a maximum operating temperature of +60°c. The rated contact current is 16 a. The product lc1d, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -5°c. The coil voltage of the product is 110 v dc. Its accurate length is 99mm. Furthermore, the product is 45mm wide. The product comes in 95mm depth. The normal state configuration includes 3no. It features tesys d range. Feature 7.5 kw of power rating. The integrated contact has 300 v dc, 690 v ac of voltage rating. It has equipped with 3 poles. The terminal is a cable type. The coil voltage of the product is 110vdc. Moreover, it has spring terminal terminal style. The product has -40°c ~ 70°c operating temperature range. The product's switching voltage is 690vac, 300vdc - max. On the other hand, 77 vdc is the given crucial/must operating voltage. The schneider electric's product offers user-desired applications. It also has a 3pst-no (3 form a) contact form. The operating time of the product is 72.45 ms. While the must release voltage is a 11 vdc. It has a long 5 weeks standard lead time. It has a contact current rating of 12 a. The splendid features of the product include auxiliary contacts, suppressor. The product is available in chassis mount, din rail configuration. The product tesys, is a highly preferred choice for users. While 24 ms is its release time. In addition, box is the available packaging type of the product.

pdf icon
Datasheet(Technical Reference)
pdf icon
Green Premium - Product Environmental Profile(Technical Reference)
pdf icon
TeSys D Green Range Guide(Technical Reference)
pdf icon
Product Change Notice (PCN)(Technical Reference)
pdf icon
Product Environmental Profile(Technical Reference)
