Contactor Application:
Resistive Load
Coil Voltage:
24 V ac
Pole and Throw Configuration:
4
Width:
45 mm
Contact Current:
9A
Control Circuit Voltage Uc:
24 V ac
Function:
Motor Control, Resistive Load
Operational Current Ie:
20A
Product Type:
Contactor
Maximum Operating Temperature:
60°C
Terminal Type:
Screw
Length:
85mm
Standards/Approvals:
CCC, CSA, EAC, IEC, RoHS, UL
Number of Auxiliary Contacts:
2
Auxiliary Contact Configuration:
1 NO/1 NC
Mount Type:
DIN Rail
Better World Product:
Yes
Series:
TeSyS D
Depth:
90mm
Normal State Configuration:
2 NO/2 NC
Contact Voltage:
690V ac
Power Rating:
1.56W
Number of Poles:
4
Minimum Operating Temperature:
-5°C
Coil Voltage:
24VAC
Termination Style:
Screw Terminal
Operating Temperature:
-40°C ~ 70°C
Coil Resistance:
-
title:

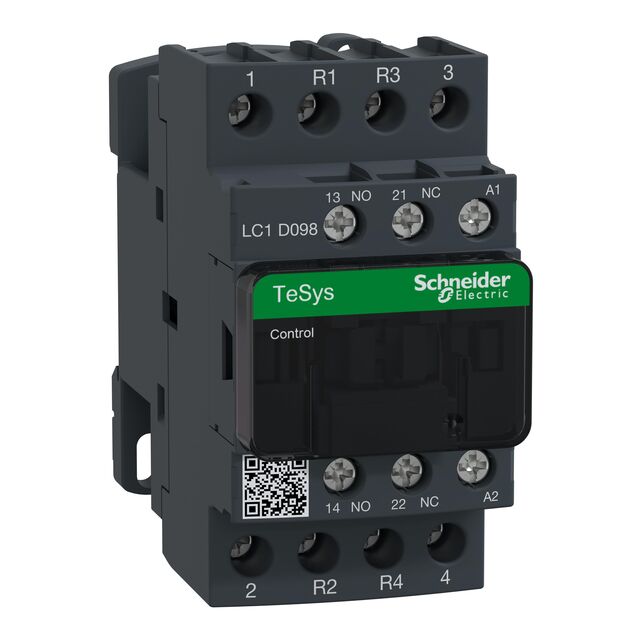

LC1D098B7
Coil Power:
-
Must Operate Voltage:
19.2 VAC
Manufacturer:
Schneider Electric
Contact Form:
4PST-NO (4 Form A)
Operate Time:
22 ms
Must Release Voltage:
7.2 VAC
standardLeadTime:
5 Weeks
Contact Rating (Current):
20 A
Features:
Auxiliary Contacts
Mounting Type:
Chassis Mount, DIN Rail
Series:
TeSys
Switching Voltage:
690VAC, 250VDC - Max
Release Time:
19 ms
Packaging:
Box
Contact Material:
-
