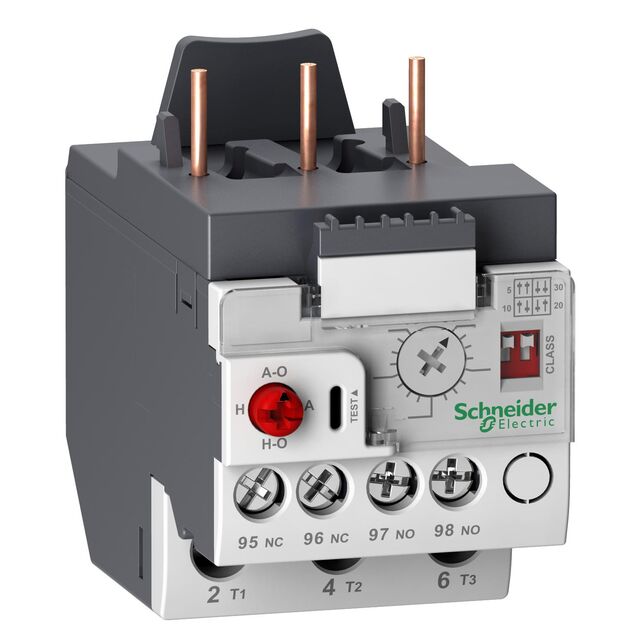

Schneider Electric Thermal Overload Relay, 6.4 → 32 A, 300 mW, 660 (Signalling Circuit) V, 690 (Power Circuit) V

Enrgtech Part No: ET16748129
|
Manufacturer Part No:
LR9D32
|
Manufacturer: Schneider Electric

LR9D32 Schneider Electric Thermal Overload Relay, 6.4 → 32 A, 300 mW, 660 (Signalling Circuit) V, 690 (Power Circuit) V

Product Information

Better World Verification:

Green Premium

Better World Product:

Yes

Reset Method:

Automatic, Manual

Pole Configuration:

Contact Current Rating:

6.4 → 32 A

Series:

LR9D

Control Voltage:

660 (Signalling Circuit) V, 690 (Power Circuit) V

Length:

45mm

Mounting Style:

Under Contactor Mount

Width:

79.9mm

Depth:

72.5mm

Range:

TeSys

Checking for live stock

The Schneider Electric LR9D32 is a high-performance electric thermal overload relay designed for superior motor protection. Part of the renowned TeSys Deca range, it offers a versatile current adjustment span from 6.4A to 32A. This three-pole device ensures industrial equipment remains safe from overheating and electrical faults. Its compact design allows for direct mounting under contactors. This reliable component is essential for modern motor control systems.

Key Advantages for Users

This Schneider Electric LR9D32 contactor overload relay provides precise protection against phase failure and load unbalance to prevent costly motor damage. Its selectable tripping classes offer flexibility for various industrial applications.

Simplifies maintenance with clear trip indicators and manual/automatic reset options.
Reduces energy waste through low power consumption and high-accuracy electronic sensing.

Design Features & Technical Specifications

Range: TeSys Deca / LR9D
Current Adjustment Range: 6.4 → 32 A
Pole Configuration: 3-Pole (3P)
Tripping Class: Selectable Class 5, 10, 20, or 30
Rated Operational Voltage: 690V (Power Circuit) / 660V (Signalling Circuit)
Mounting Style: Direct under contactor or DIN rail via adapter
Terminal Type: Secure screw clamp terminals
Protection Functions: Phase failure, load unbalance, and thermal overload.

Green Premium - Product Environmental Profile(Technical Reference)

LR9D - Instruction Sheet(Technical Reference)

Product Environmental Profile(Technical Reference)

Datasheet(Technical Reference)

LR9D Overload - Catalogue(Technical Reference)

TESYS LR9D - Brochure(Technical Reference)

Tesys D Green Range Guide(Technical Reference)
