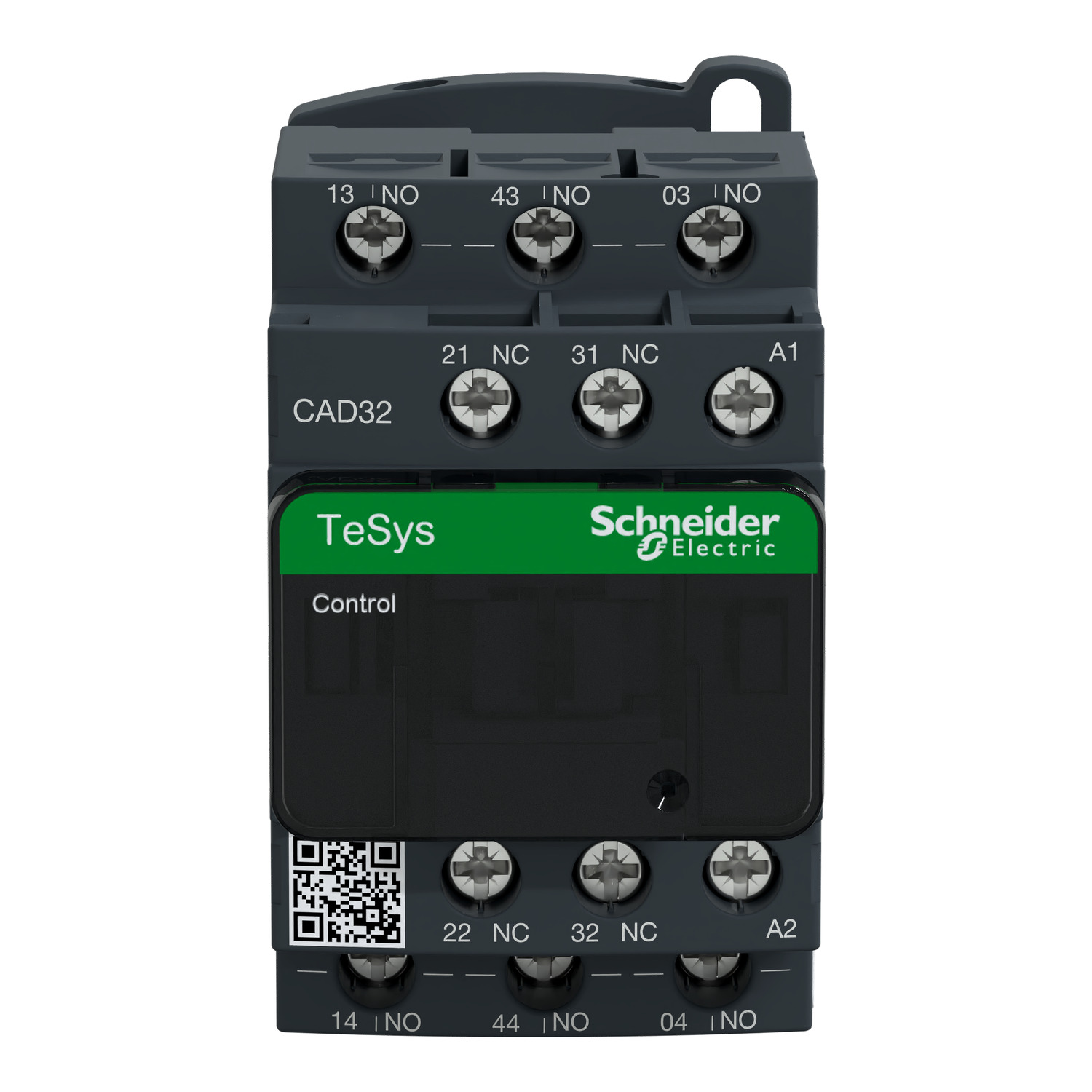

Contactor Application:
Control Relay
Coil Voltage:
115V
Pole and Throw Configuration:
5
Width:
45mm
Contact Current:
10A
Control Circuit Voltage Uc:
115V
Function:
Control Relay
Operational Current Ie:
10A
Product Type:
Contactor
Maximum Operating Temperature:
70?C
Terminal Type:
Screw Clamp
Length:
77mm
Standards/Approvals:
CB scheme, CCC, CE, CSA, CSA C22.2 No 60947-5-1, EAC, EN/IEC 60947-5-1, GB/T 14048.5, JIS C8201-5-1, REACH, RoHS, UKCA, UL, UL 60947-5-1
Number of Auxiliary Contacts:
5
Auxiliary Contact Configuration:
3 NO/2 NC
Mount Type:
Plate, Rail Mount
Better World Product:
Yes
Series:
TeSyS CA
Depth:
84mm
Normal State Configuration:
2 NO/2 NC
Contact Voltage:
600V ac
Number of Poles:
5
Minimum Operating Temperature:
-40?C
