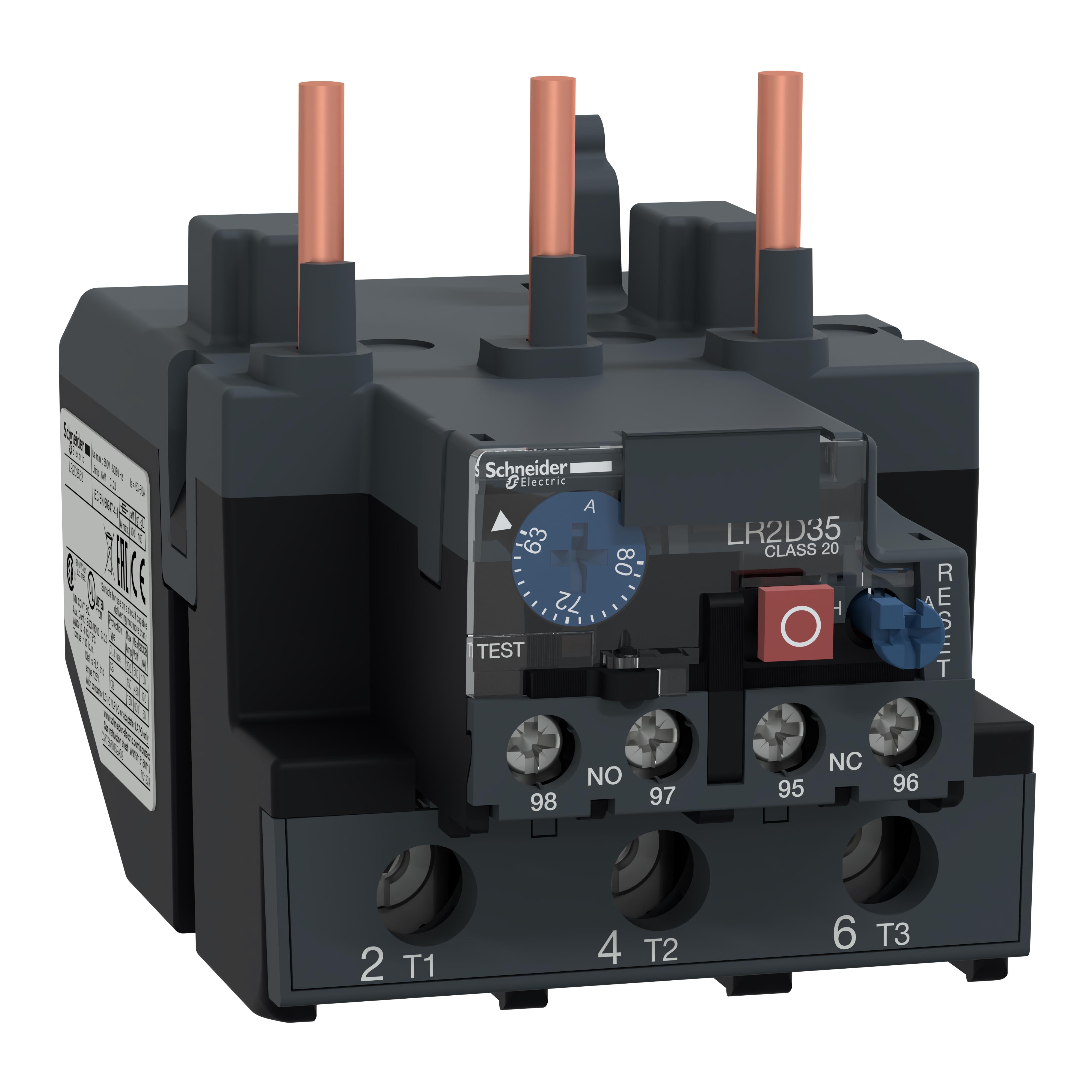

Schneider Electric Thermal Overload Relay, 63 → 80 A, 80 A

Enrgtech Part No: ET13863432
|
Manufacturer Part No:
LR2D3563
|
Manufacturer: Schneider Electric

LR2D3563 Schneider Electric Thermal Overload Relay, 63 → 80 A, 80 A

Product Information

Better World Verification:

Green Premium

Better World Product:

Yes

Reset Method:

Automatic, Manual

Pole Configuration:

Operating Temperature Range:

-20 → +60 °C

Contact Current Rating:

80 A

Series:

LRD

Length:

121mm

Mounting Style:

DIN Rail Mount

Width:

75mm

Depth:

100mm

Minimum Operating Temperature:

-20°C

warehouse-1

5 - In Stock

Ships in 5-7 business days

Each

Quantity

Unit Price (ex VAT)

Price

£ 281.17

Mfr Part No:

LR2D3563

Seller:

Schneider Electric (warehouse-1)

Origin:

Warranty:

Manufacturer

Data Code:

ET13863432

Order Today!

From: United Kingdom

Est Ship Date: 05 Jun, 2026

Est Fastest Delivery: 09 Jun, 2026

Quantity Quantity

The Schneider Electric LR2D3563 is a high-capacity TeSys LRD thermal overload relay. It features an expansive adjustment range from 63 to 80 Amperes for heavy-duty motors. This differential relay provides superior protection against phase imbalances and circuit overloads. It integrates seamlessly with TeSys Deca contactors using secure EverLink BTR screw terminals. Its advanced design ensures high vibration resistance and thermal stability. This component is ideal for critical power and industrial infrastructure.

Main Benefits of Using This Product

The EverLink terminals of the Schneider Electric LR2D3563 thermal overload relay ensure permanent tightening to prevent overheating at connection points. Its clear settings allow for precise motor protection and reduced system downtime.

Enhanced safety with a transparent cover over adjustment dials.
High-performance protection for large industrial motor applications.

Notable Features & Technical Information

Thermal Protection Range: 63 A to 80 A.
Tripping Class: Class 10A compliant with IEC 60947-4-1.
Connection Type: EverLink BTR screw clamp terminals for power.
Phase Failure Sensitivity: Tripping current 130% of Ir in one phase.
Signalling: Local trip indicator for fast diagnostics.
Rated Insulation Voltage: 600 V for power circuits (UL/CSA).
Durability: Rated for high shock and vibration resistance.
