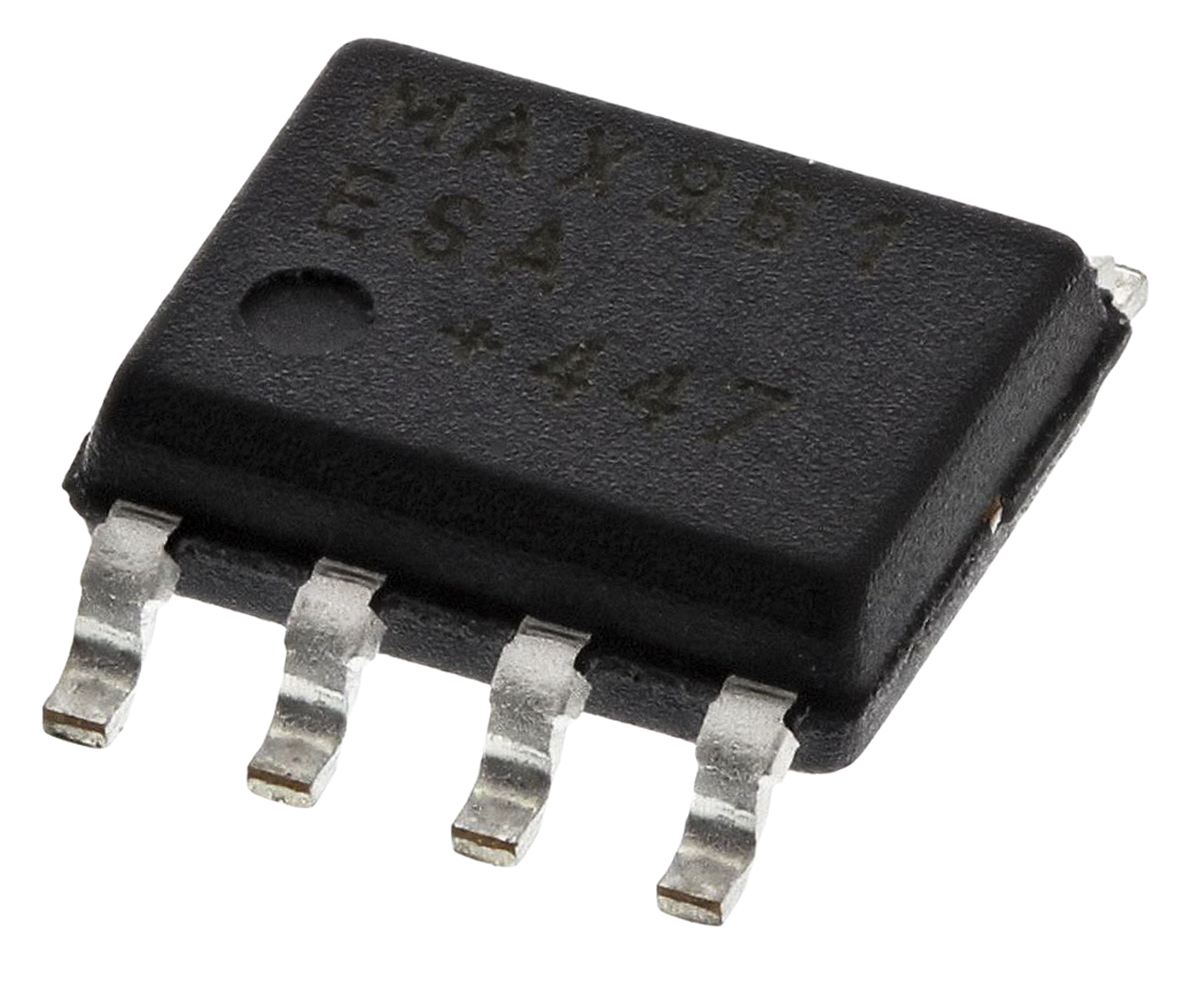

MAX961ESA+ Maxim, General Purpose Comparator, Complementary O/P, 3 V, 5 V 8-Pin SOIC

MAX961ESA- MAX961ESA+ Maxim, General Purpose Comparator, Complementary O/P, 3 V, 5 V 8-Pin SOIC
Maxim Integrated

Product Information

The MAX961ESA+ is a high-performance, general-purpose comparator by Maxim Integrated offered in a compact 8-pin SOIC package, supporting a power supply range of 3V to 5V. Boasting complementary output, this device blends versatility and precision, making it an optimal choice for many digital and analogue applications.

Comparator Type:
General Purpose
Dimensions:
5 x 4 x 1.5mm
Mounting Type:
Surface Mount
Typical PSRR:
86.02dB
Power Supply Type:
Single
Number of Channels per Chip:
1
Typical CMRR:
80dB
Typical Single Supply Voltage:
3 V, 5 V
Output Type:
Complementary
Height:
1.5mm
Width:
4mm
Length:
5mm
Package Type:
SOIC
Minimum Operating Temperature:
-40 °C
Maximum Operating Temperature:
+85 °C
Pin Count:
8
HTSUS:
8542.39.0001
RoHS Status:
ROHS3 Compliant
Current - Input Bias (Max):
15µA @ 5V
Current - Quiescent (Max):
11mA
Operating Temperature:
-40°C ~ 85°C
Voltage - Supply, Single/Dual (±):
2.7V ~ 5.5V
Package / Case:
8-SOIC (0.154", 3.90mm Width)
Type:
General Purpose
Propagation Delay (Max):
7ns
REACH Status:
REACH Unaffected
Output Type:
CMOS, Complementary, TTL
Hysteresis:
3.5mV
CMRR, PSRR (Typ):
80dB CMRR, 86.02dB PSRR
Package:
Tube
Voltage - Input Offset (Max):
1.5mV @ 5V
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Current - Output (Typ):
-
standardLeadTime:
29 Weeks
Mounting Type:
Surface Mount
Series:
Beyond-the-Rails™
Supplier Device Package:
8-SOIC
Number of Elements:
1
Base Product Number:
MAX961
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The MAX961ESA+ is a high-speed, low-power comparator manufactured by Maxim Integrated. It delivers complementary outputs, operates at 3 V and 5 V and comes in an 8-pin small-outline integrated circuit (SOIC) package. It is a universal comparator with complementary results, used at 3 V or 5 V. Its features, including high-speed performance, low power consumption, and wide operating voltage range, make it qualified for various motor control, signal conditioning, switching, level detection, and industrial automation applications.

Benefits Of MAX961ESA+ Maxim, Comparator, Complementary O/P, 3 V, 5 V 8-Pin SOIC Include:

  • Versatility: The ability to operate at 3 V and 5 V voltage levels makes the MAX961ESA+ versatile and compatible with various electronic systems. It can be utilised in numerous applications, including industrial automation, consumer electronics, automotive systems, and more.
  • Enhanced Signal Processing: The high-speed performance of the MAX961ESA+ enables efficient and accurate signal processing. It is suitable for applications that require precise detection and fast response to changing input signals.
  • Power Efficiency: The low-power design of the comparator contributes to power efficiency in systems where energy conservation is essential. It allows devices to operate for extended periods without draining the battery quickly.

Features of MAX961ESA+ Maxim, Comparator, Complementary O/P, 3 V, 5 V 8-Pin SOIC:

  • Complementary Outputs: The MAX961ESA+ provides complementary outputs, which means that the output voltage is either high or low, depending on the input voltage level. This feature makes it suitable for applications requiring positive and negative output signals.
  • Wide Operating Voltage Range: The comparator can operate at either 3 V or 5 V, allowing flexibility in different voltage systems. This feature makes it compatible with a wide range of applications.
  • High-Speed Performance: With a propagation delay of only 15 ns, the MAX961ESA+ offers high-speed performance. This suits it to applications requiring fast response times, such as motor control and high-frequency signal processing.
  • Low Power Consumption: The comparator is designed to operate with low power consumption, making it ideal for battery-powered devices or energy-efficient systems. It helps extend battery life and reduces overall power consumption.

Versatile Applications of MAX961ESA+ Maxim, Comparator, Complementary O/P, 3 V, 5 V 8-Pin SOIC:

  • Motor Control: The MAX961ESA+ can be used in motor control applications, providing fast and accurate feedback for controlling motor speed, position, and direction.
  • Signal Conditioning: It can be employed in various signal conditioning circuits where precise detection and amplification of signals are required, such as in audio systems, instrumentation, and communication equipment.
  • Switching and Level Detection: The comparator is suitable for applications involving switching and level detection tasks, such as in power management circuits, battery chargers, and voltage monitors.
  • Industrial Automation: With its high-speed performance and low power usage, this comparator can be utilised in industrial automation systems for monitoring and managing sensors, actuators, and feedback loops.
