TDK 2.2 mH 500 mA Common Mode Choke 400mΩ 42 V ac, 80 V dc

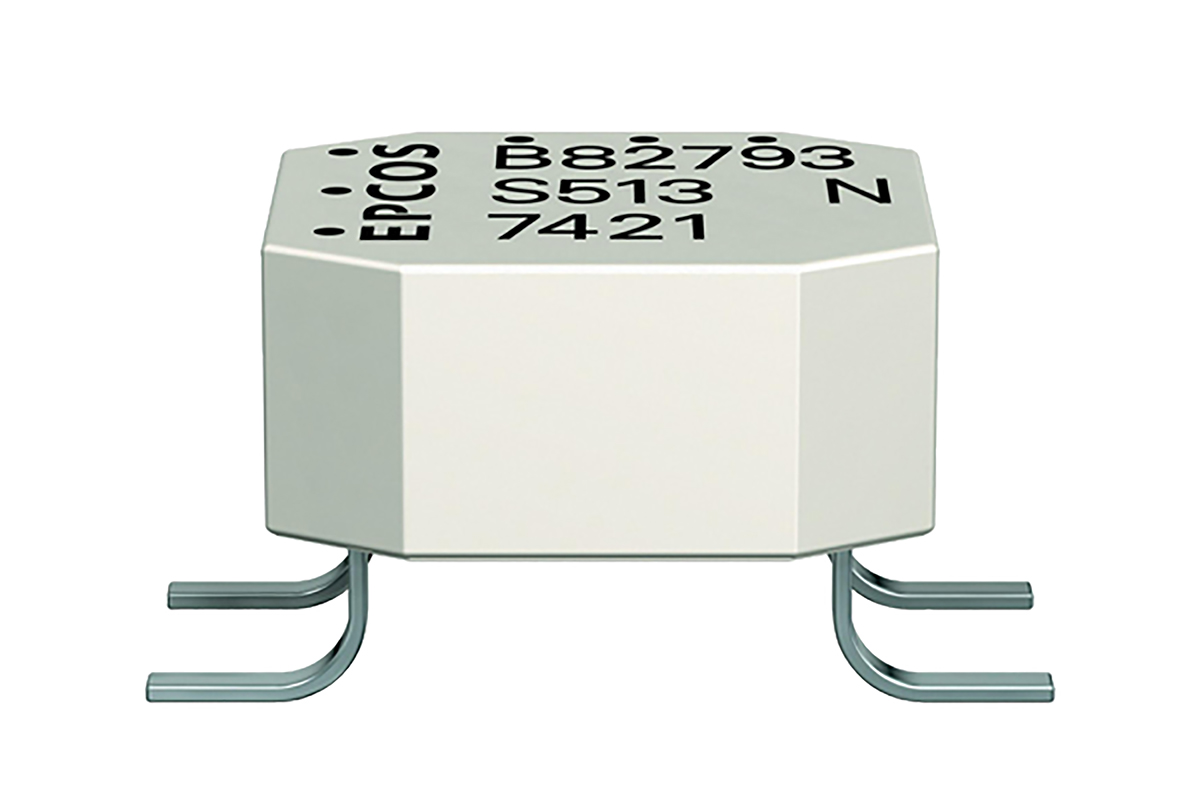

B82793C0225N265 TDK 2.2 mH 500 mA Common Mode Choke 400mΩ 42 V ac, 80 V dc
B82793C0225N265 TDK 2.2 mH 500 mA Common Mode Choke 400mΩ 42 V ac, 80 V dc
EPCOS

Product Information

Termination Style:
Solder Pad
Inductance Tolerance:
30 to 50 %
Number of Lines:
1
Automotive Standard:
AEC-Q200
Packaging:
Tape & Reel
Inductance:
2.2 mH
Choke Voltage:
80 V ac
Impedance:
3.4kΩ
Product Type:
Common Mode Choke
Maximum Operating Temperature:
125°C
Maximum DC Current:
500mA
Length:
7.1mm
Standards/Approvals:
RoHS
Pin Count:
4
Mount Type:
Surface Mount
Maximum DC Resistance:
400mΩ
Series:
B82793C0
Depth:
6mm
Height:
4.8mm
Test Frequency:
50 to 60 Hz
Minimum Operating Temperature:
-40°C
RoHs Compliant
Checking for live stock

This is TDK 2.2 mH 500 mA Common Mode Choke 400mΩ 42 V ac 80 V dc manufactured by EPCOS. The manufacturer part number is B82793C0225N265. Moreover, it has solder pad terminal style. It has a standard 30 to 50 % inductance tolerance . It is comprised of 1 lines. The product complies with automotive standard - aec-q200. In addition, tape & reel is the available packaging type of the product. The product has a 2.2 mh inductance value. It has an impedance value of 3.4kω. common mode choke is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 125°c. While it carries 500ma of maximum DC current. Its accurate length is 7.1mm. It contains 4 pins. It has a surface mount type mount . It allows up to 400mω maximum DC resistance. The product b82793c0, is a highly preferred choice for users. The product comes in 6mm depth. In addition, the height is 4.8mm. It features a test frequency of 50 to 60 hz. Whereas, the minimum operating temperature of the product is -40°c.
