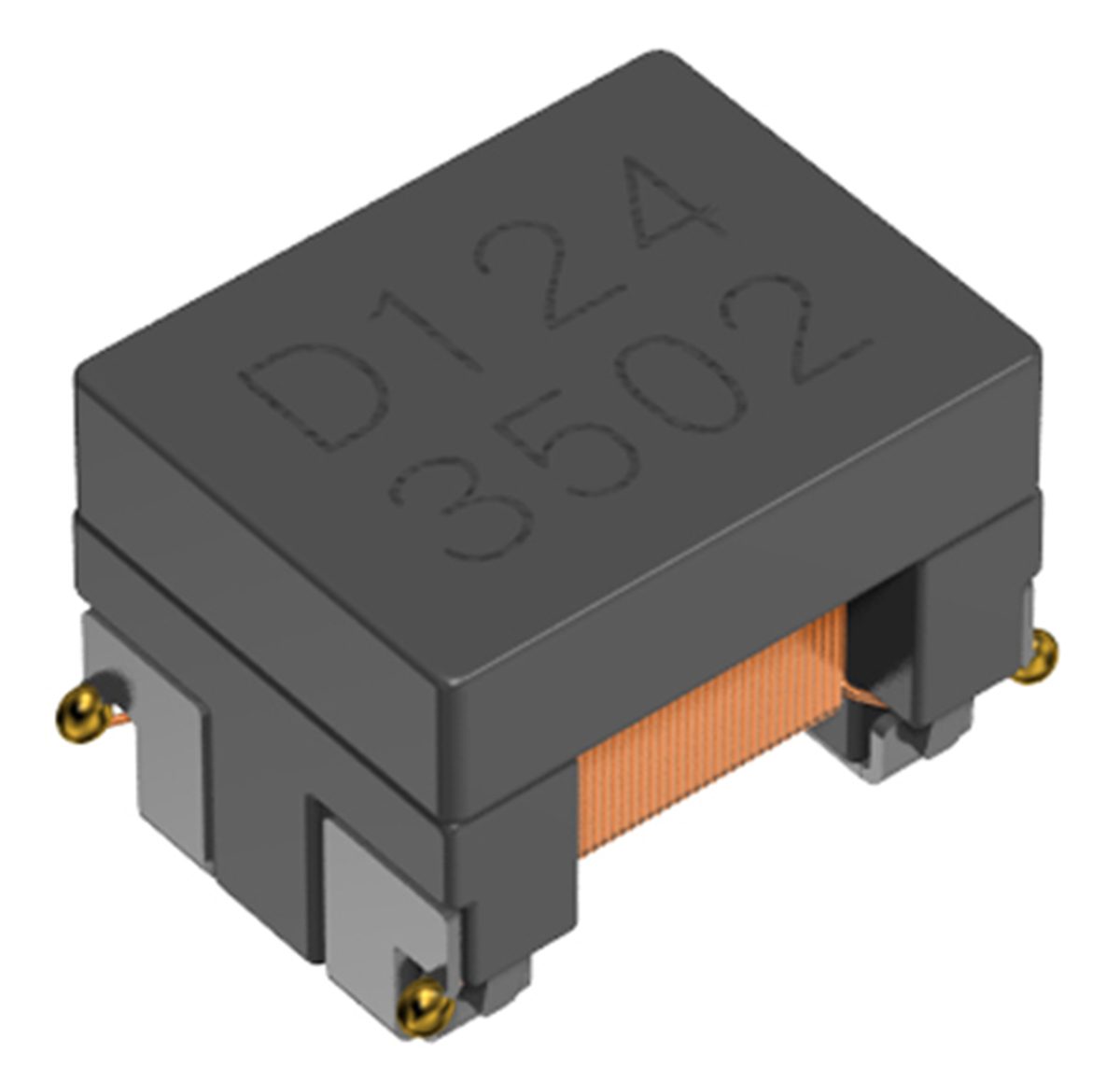

TDK ACT Common mode filter, 1.5 Ω, -55 → +105 °C, 150 mA, 1.5Ω, 3.9 x 2.5 x 2.5mm

ACT1210-101-2P-TL00 TDK ACT Common mode filter, 1.5 Ω, -55 → +105 °C, 150 mA, 1.5Ω, 3.9 x 2.5 x 2.5mm
ACT1210-101-2P-TL00 TDK ACT Common mode filter, 1.5 Ω, -55 → +105 °C, 150 mA, 1.5Ω, 3.9 x 2.5 x 2.5mm
TDK

Product Information

Test Frequency:
10 MHz
Product Type:
Common Mode Filter
Maximum Operating Temperature:
150°C
Maximum DC Resistance:
1.5Ω
Maximum DC Current:
150mA
Series:
ACT
Minimum Operating Temperature:
-55°C
Termination Style:
Surface Mount
Length:
3.9mm
Height:
2.5mm
Packaging:
Tape & Reel
Depth:
2.5mm
Standards/Approvals:
RoHS
Inductance:
100 μH
Choke Voltage:
80 V
Impedance:
5100Ω
Package/Case:
1210
Number of Lines:
2
Automotive Standard:
AEC-Q200
Mount Type:
Surface
RoHs Compliant
Checking for live stock

This is ACT Common mode filter 1.5 Ω -55 → +105 °C 150 mA 1.5Ω 3.9 x 2.5 x 2.5mm manufactured by TDK. The manufacturer part number is ACT1210-101-2P-TL00. It features a test frequency of 10 mhz. common mode filter is a versatile product designed to provide user-defined applications. It has a maximum operating temperature of 150°c. It allows up to 1.5ω maximum DC resistance. While it carries 150ma of maximum DC current. The product act, is a highly preferred choice for users. Whereas, the minimum operating temperature of the product is -55°c. Moreover, it has surface mount terminal style. Its accurate length is 3.9mm. In addition, the height is 2.5mm. In addition, tape & reel is the available packaging type of the product. The product comes in 2.5mm depth. The product has a 100 μh inductance value. It has an impedance value of 5100ω. Concerning its package and casing, it is 1210. It is comprised of 2 lines. The product complies with automotive standard - aec-q200. It has a surface type mount .
