Bulgin RFSSMAA2JEGA

RFSSMAA2JEGA Bulgin
RFSSMAA2JEGA
Bulgin

Product Information

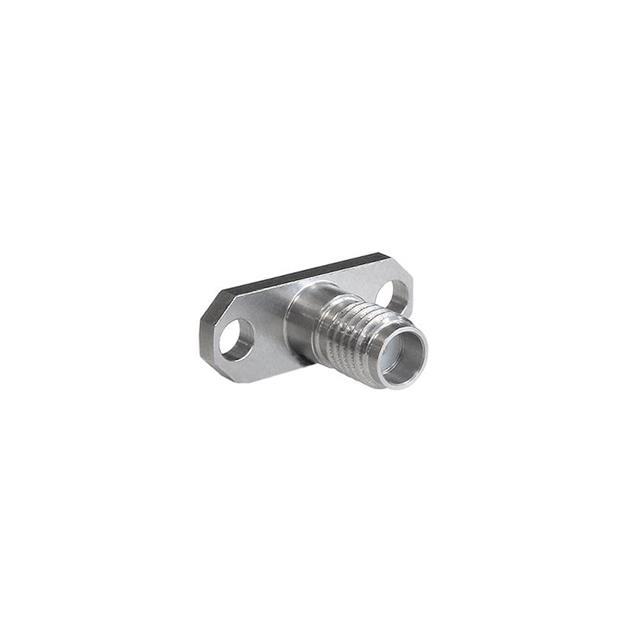

The RFSSMAA2JEGA, Bulgin, is a circular coaxial connector made of stainless steel. This RF connector features a flange mount configuration ensuring efficient RF (Radio Frequency) applications with high precision and reliability.



Mounting Type:
Flange Mount
Gender:
Female
Body Orientation:
Straight
Coaxial Connector Type:
Circular Coaxial Connector
Termination Method:
Jack Screw
HTSUS:
8536.69.4010
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Flange
Center Contact Material:
Beryllium Copper
Operating Temperature:
-65°C ~ 165°C
Connector Style:
SSMA
Body Finish:
-
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
20 Weeks
title:
RFSSMAA2JEGA
Shield Termination:
Screw
REACH Status:
REACH Unaffected
Includes:
-
Frequency - Max:
40 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
-
Voltage Rating:
350 V
Connector Type:
Jack, Female Socket
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Stainless Steel
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Panel Mount
Series:
-
Center Contact Plating:
-
Packaging:
Bulk
Contact Termination:
Compression
Base Product Number:
RFSSMA
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The RFSSMAA2JEGA is a high-quality RF connector manufactured by Bulgin, specifically designed for RF (radio frequency) applications. This particular model is part of the SSMA series and features a straight female flange design, making it suitable for various RF connectivity needs.

Design and Construction: The RFSSMAA2JEGA connector is built with precision and durability in mind. It is constructed using high-quality materials that ensure reliable performance in demanding RF environments. The straight female flange design allows for secure and stable connections, minimizing signal loss and maintaining excellent RF transmission characteristics.

RF Performance: With its SSMA interface, the RFSSMAA2JEGA connector offers excellent RF performance. It is capable of handling high-frequency signals with low insertion loss and impedance mismatch, making it suitable for applications requiring precise signal transmission. The connector also provides good VSWR (Voltage Standing Wave Ratio) characteristics, ensuring minimal signal reflection and maximum power transfer.

Durability and Environmental Resistance: Bulgin's RF connectors are renowned for their ruggedness and ability to withstand harsh environmental conditions. The RFSSMAA2JEGA connector is no exception, as it is designed to withstand high temperatures, moisture, dust, and vibration. Its robust construction ensures long-term reliability in challenging environments.

Ease of Installation: The RFSSMAA2JEGA connector features a user-friendly design that facilitates easy installation. It comes with clear markings and a straightforward connection process, allowing quick and hassle-free integration into RF systems. Its compact size and lightweight construction further enhance ease of use.

Versatile Applications of RFSSMAA2JEGA, Bulgin, SSMA Straight Female Flange RF Connector:

The RFSSMAA2JEGA connector offers versatility in its applications. It can be used in a wide range of RF systems, including:

  • Telecommunications
  • Aerospace
  • Military, and
  • Industrial Applications.
  • Its compatibility with various RF cables and devices makes it a versatile choice for engineers and designers working on RF projects.





pdf icon
Datasheet - RFSSMAA2JEGA(Technical Reference)
pdf icon
Bulgin REACH(Environmental Information)
pdf icon
Bulgin RoHS Cert(Environmental Information)
