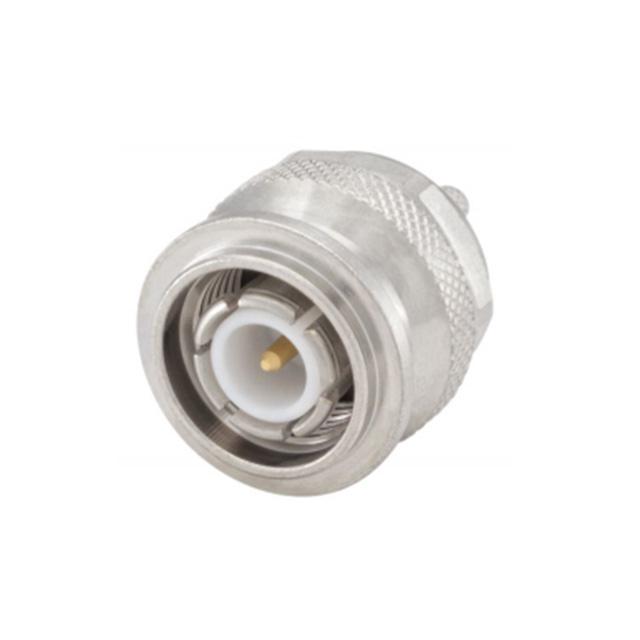

Rosenberger 56S107-802N5

56S107-802N5 Rosenberger
Rosenberger

Product Information

HTSUS:
8536.69.4010
RoHS Status:
RoHS Compliant
Mounting Feature:
-
Center Contact Material:
Bronze
Operating Temperature:
-45°C ~ 85°C
Connector Style:
TNC
Body Finish:
White Bronze
Dielectric Material:
Polytetrafluoroethylene (PTFE)
Insertion Loss:
-
standardLeadTime:
13 Weeks
title:
56S107-802N5
Shield Termination:
Crimp
REACH Status:
REACH Affected
Includes:
3 pcs - 1 Connector, 1 Contact, 1 Ferrule
Frequency - Max:
10 GHz
Housing Color:
Silver
Impedance:
50 Ohms
Cable Group:
RG-174A, 188A, 316
Voltage Rating:
500 V
Connector Type:
Plug, Male Pin
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Number of Ports:
1
Body Material:
Brass
Fastening Type:
Threaded
Mating Cycles:
500
Ingress Protection:
-
Features:
-
Mounting Type:
Free Hanging (In-Line)
Series:
-
Center Contact Plating:
Gold
Packaging:
Bulk
Contact Termination:
Crimp
Base Product Number:
56S107
ECCN:
EAR99
Checking for live stock

This is manufactured by Rosenberger. The manufacturer part number is 56S107-802N5. It is assigned with possible HTSUS value of 8536.69.4010. The product is rohs compliant. The bronze material is utilised for designing its center contacts. The product has -45°c ~ 85°c operating temperature range. It comes in tnc connector style. The body is galvanized with nice finishing of white bronze. Moreover, the product is constructed from highly polytetrafluoroethylene (ptfe) dielectric material. It has a long 13 weeks standard lead time. It has a crimp shield termination. In addition, it is reach affected. The product is also supplied with 3 pcs - 1 connector, 1 contact, 1 ferrule. It maximum frequency is 10 ghz. It has an integral silver housing colour. It has an impedance value of 50 ohms. Cable Group Options: rg-174a, 188a, 316. Moreover, the product has a nominal 500 v voltage rating. plug, male pin Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). This product features 1 number of ports. The product's body is nicely designed from brass materials. Furthermore, threaded is the Fastening Type of the product. It provides best efficiency with mating cycles of 500. The product is available in free hanging (in-line) configuration. The center contact is plated with a [Center Contract Plating]. In addition, bulk is the available packaging type of the product. It also incorporates crimp contact terminals. Moreover, it corresponds to 56s107, a base product number of the product. The product is designated with the ear99 code number.
