Dimensions:
112 x 46 x 271mm
Power Source:
Battery
DC Current Measurement Resolution:
0.1A
Maximum Conductor Size:
55mm
Width:
46mm
Resistance Measurement Resolution:
100mΩ
AC Current Measurement Resolution:
0.1A
True RMS:
Yes
Absolute Maximum AC Voltage Measurement:
600V ac

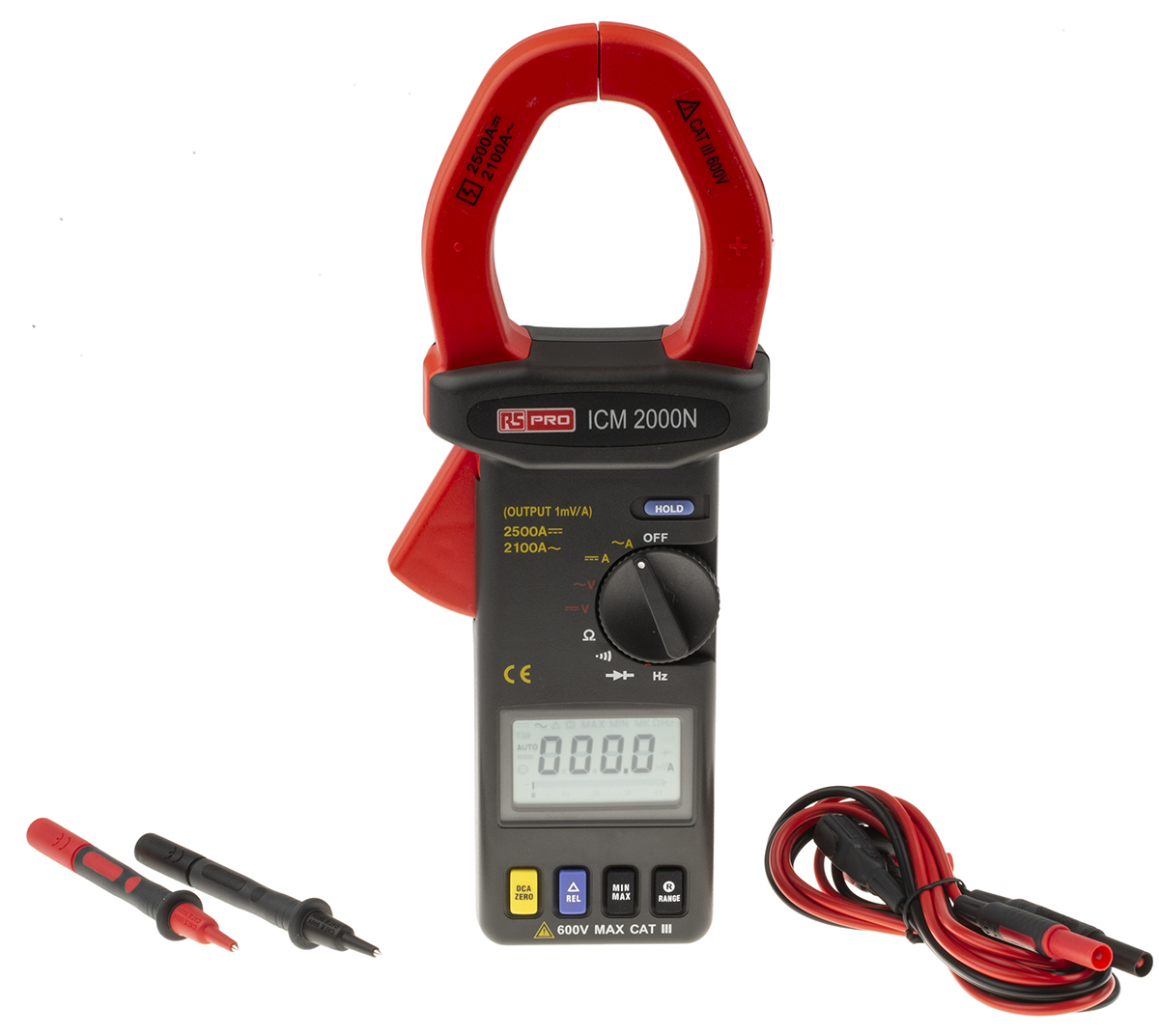

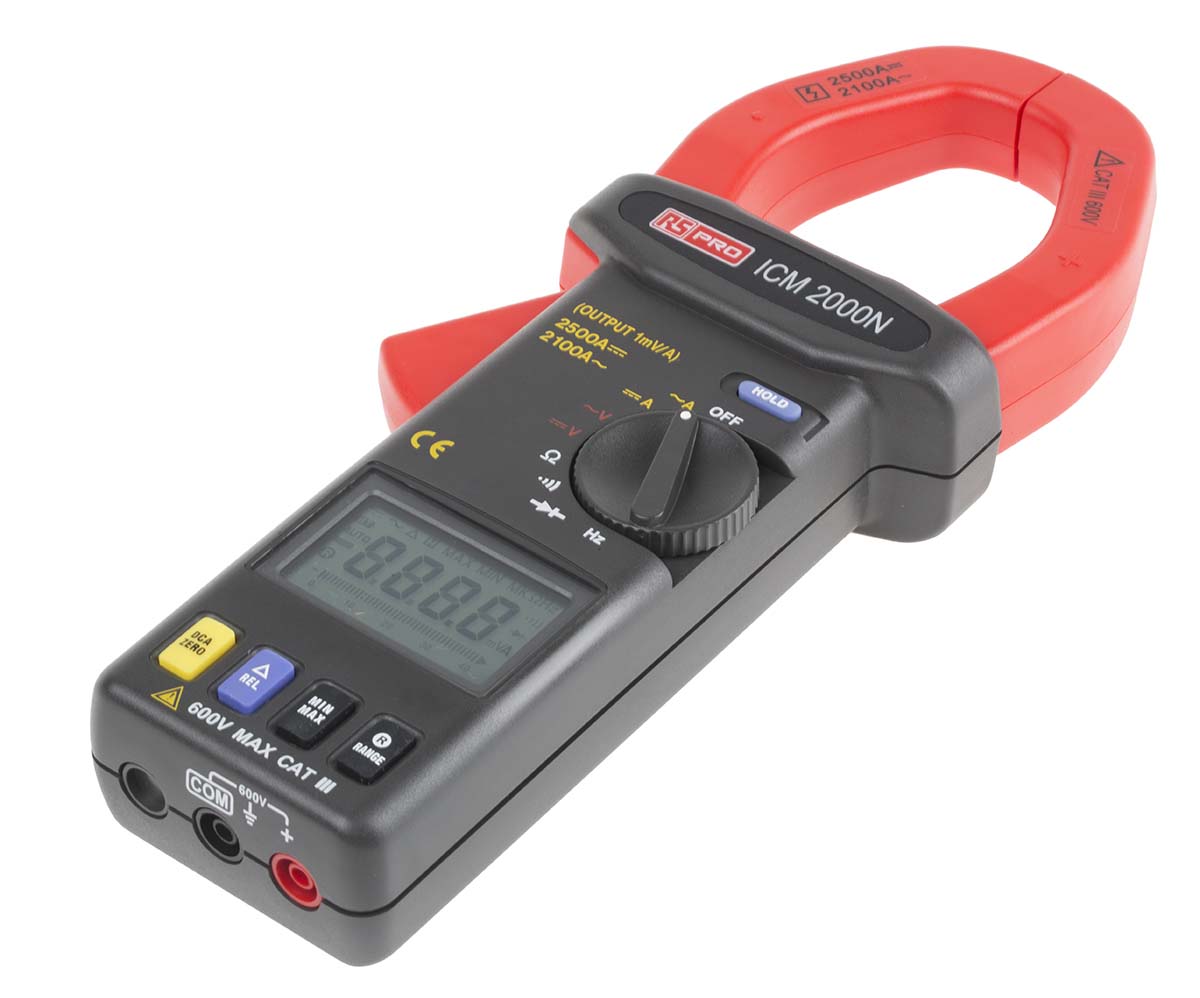

Model Number:
ICM2000N
Best AC Voltage Accuracy:
±1.5 % ± 5 Digits
Absolute Maximum AC Current Measurement:
2100A ac
Battery Type:
9V, IEC 6F22, NEDA 1604
Absolute Maximum Resistance Measurement:
40MΩ
Maximum Operating Temperature:
+40°C
Jaw Capacity Busbars:
65 (Dia.) x 24 (W)mm
Safety Category Level:
CAT III
Length:
112mm
Calibrated:
RSCAL
Absolute Maximum DC Current Measurement:
2500A dc
Display Type:
LCD
Best Resistance Measurement Accuracy:
±1.5 % ± 3 Digits
Best DC Current Accuracy:
±1.5 % ± 3 Digits
Weight:
647g
AC Voltage Measurement Resolution:
0.001V
Best AC Current Accuracy:
±1.5 % ± 5 Digits
Safety Category Voltage:
600V
Absolute Maximum DC Voltage Measurement:
600V dc
Height:
271mm
Safety Category:
CAT III 600 V
Best DC Voltage Accuracy:
±1 % ± 3 Digits
DC Voltage Measurement Resolution:
0.1mV
Clamp Meter Type:
AC/DC Clamp Meter
Minimum Operating Temperature:
0°C
Functions Measured:
AC Current, AC Voltage, DC Current, DC Voltage, Frequency, Resistance
