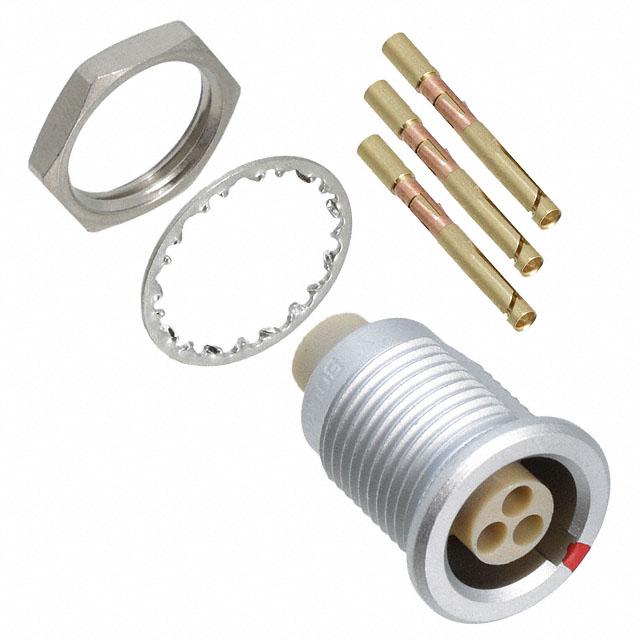

Souriau-Sunbank by Eaton JBXER1G03FCSDSR

JBXER1G03FCSDSR Souriau-Sunbank by Eaton
Souriau-Sunbank by Eaton

Product Information

Current Rating:
12.0A
Mating Type:
Push-Pull
Mounting Type:
Panel Mount
IP Rating:
IP40
Series:
JBX
Body Orientation:
Straight
Voltage Rating:
420.0 V , 600.0 V
Contact Gender:
Female
Termination Method:
Crimp
Housing Material:
Brass
Plug/Socket:
Socket
Contact Plating:
Nickel over Gold
Shell Size:
1
Number of Contacts:
3
Contact Material:
Brass
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
600V
Mounting Feature:
Bulkhead - Rear Side Nut
Operating Temperature:
-40°C ~ 125°C
Shell Size, MIL:
-
Number of Positions:
3
Backshell Material, Plating:
-
Shielding:
Shielded
Cable Opening:
-
Shell Material:
Brass
REACH Status:
REACH Unaffected
Current Rating (Amps):
12A
edacadModel:
JBXER1G03FCSDSR Models
Applications:
Industrial, Instrumentation, Medical, Telecommunications
Contact Finish - Mating:
Gold
Primary Material:
Metal
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/2601336
Package:
Bulk
Shell Size - Insert:
1
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Pull
Termination:
Crimp
standardLeadTime:
24 Weeks
Insert Material:
Polyetheretherketone (PEEK)
Orientation:
G
Ingress Protection:
IP40
Features:
-
Mounting Type:
Panel Mount
Shell Finish:
Chrome over Nickel
Color:
Silver
Series:
JBX
Contact Finish Thickness - Mating:
19.7µin (0.50µm)
Contact Material:
-
Base Product Number:
JBXER1G
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Souriau-Sunbank by Eaton. The manufacturer part number is JBXER1G03FCSDSR. The product has a current rating of 12.0a. It is a type of push-pull mating. The product is available in panel mount configuration. It is IP rated with ip40. The product jbx, is a highly preferred choice for users. It has straight body orientation. Moreover, the product has a nominal 420.0 v , 600.0 v voltage rating. This female contact is widely suited for specific applications. It allows crimp termination method. The product also features robust brass housing material. It comprises a socket. The high-quality nickel over gold is used as contact plating material. The shell has 1 size. The product contains 3 contacts. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. Moreover, the product has a nominal 600v voltage rating. The product's mounting feature includes bulkhead - rear side nut. The product has -40°c ~ 125°c operating temperature range. The product carries possible position value of 3. Furthermore, the product is shielded with shielded. It is made from highly reliable brass materials. In addition, it is reach unaffected. Additionally, the product's output is 12a. The product is widely employed in industrial, instrumentation, medical, telecommunications. It has nice contact finishing of gold. The basic product material is metal. It carries ul94 v-0 of material flammability rating. It is shipped in bulk package . The insert's size is 1. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features crimp termination style. It has a long 24 weeks standard lead time. While it is also supplied with highly stable polyetheretherketone (peek) insert material. The product has a g orientation. It is IP rated with ip40. The shell is an excellent finishing of chrome over nickel. It has a classic silver colour. However, 19.7µin (0.50µm) is the "Contact Finish Thickness - Mating" of the product. Moreover, it corresponds to jbxer1g, a base product number of the product. The product is designated with the ear99 code number.
