Number of Contacts:
3
Current Rating:
7.0A
Mating Type:
Bayonet
Mounting Type:
Flange Mount
IP Rating:
IP68, IP69K
Series:
UTS
Body Orientation:
Straight
Voltage Rating:
600.0 V
Contact Gender:
Female
Termination Method:
Solder
Housing Material:
Thermoplastic
Plug/Socket:
Plug
Connector Size:
Standard
Minimum Operating Temperature:
-40°C
Shell Size:
8
Strain Relief:
No
Maximum Operating Temperature:
+105°C
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Flange
Operating Temperature:
-40°C ~ 105°C
Shell Size, MIL:
-
Number of Positions:
3
Backshell Material, Plating:
-
Shielding:
Unshielded
Cable Opening:
-
Shell Material:
Polybutylene Terephthalate (PBT)
REACH Status:
REACH Unaffected
Current Rating (Amps):
7A
edacadModel:
UTS08E33S Models
Applications:
Energy, Instrumentation, Lighting, Telecommunications
Contact Finish - Mating:
Gold
Primary Material:
Plastic
Material Flammability Rating:
UL94 V-0
edacadModelUrl:
/en/models/4493575
Voltage Rating:
250V
Shell Size - Insert:
8-33
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Bayonet Lock
Termination:
Solder Cup
standardLeadTime:
12 Weeks
Insert Material:
Polychloroprene
Orientation:
N (Normal)
Ingress Protection:
IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
UV Resistant
Mounting Type:
Panel Mount
Shell Finish:
-
Color:
Black
Series:
Trim Trio® UTS Hi Seal
Packaging:
Bulk
Contact Finish Thickness - Mating:
16.0µin (0.41µm)
Contact Material:
Brass
Base Product Number:
UTS08
ECCN:
EAR99

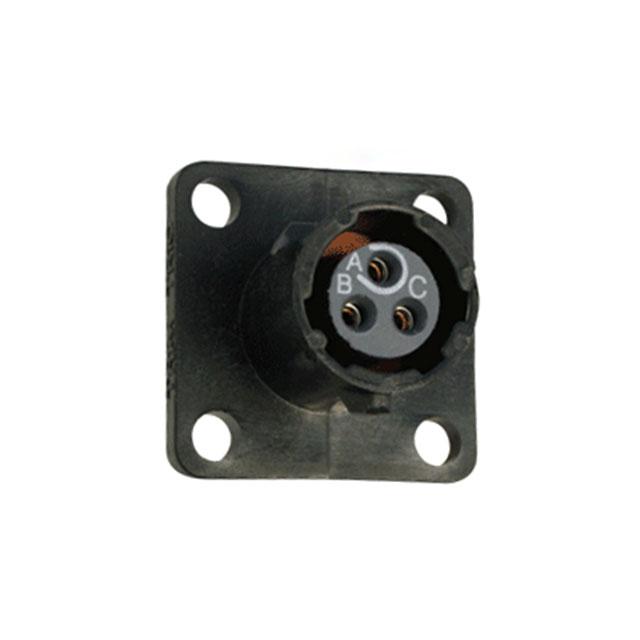

This is manufactured by Souriau-Sunbank by Eaton. The manufacturer part number is UTS08E33S. The product contains 3 contacts. The product has a current rating of 7.0a. It is a type of bayonet mating. The product is available in flange mount configuration. It is IP rated with ip68, ip69k. The product uts, is a highly preferred choice for users. It has straight body orientation. Moreover, the product has a nominal 600.0 v voltage rating. This female contact is widely suited for specific applications. It allows solder termination method. The product also features robust thermoplastic housing material. It comprises a plug. The connector has standard size. Whereas, the minimum operating temperature of the product is -40°c. The shell has 8 size. It has a strain relief characteristic no . It has a maximum operating temperature of +105°c. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. The product's mounting feature includes flange. The product has -40°c ~ 105°c operating temperature range. The product carries possible position value of 3. Furthermore, the product is shielded with unshielded. It is made from highly reliable polybutylene terephthalate (pbt) materials. In addition, it is reach unaffected. Additionally, the product's output is 7a. The product is widely employed in energy, instrumentation, lighting, telecommunications. It has nice contact finishing of gold. The basic product material is plastic. It carries ul94 v-0 of material flammability rating. Moreover, the product has a nominal 250v voltage rating. The insert's size is 8-33. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, bayonet lock is the Fastening Type of the product. The product features solder cup termination style. It has a long 12 weeks standard lead time. While it is also supplied with highly stable polychloroprene insert material. The product has a n (normal) orientation. It is IP rated with ip68/ip69k - dust tight, water resistant, waterproof. The splendid features of the product include uv resistant. The product is available in panel mount configuration. It has a classic black colour. The product trim trio® uts hi seal, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. However, 16.0µin (0.41µm) is the "Contact Finish Thickness - Mating" of the product. The product is made from sturdy brass materials. Moreover, it corresponds to uts08, a base product number of the product. The product is designated with the ear99 code number.
