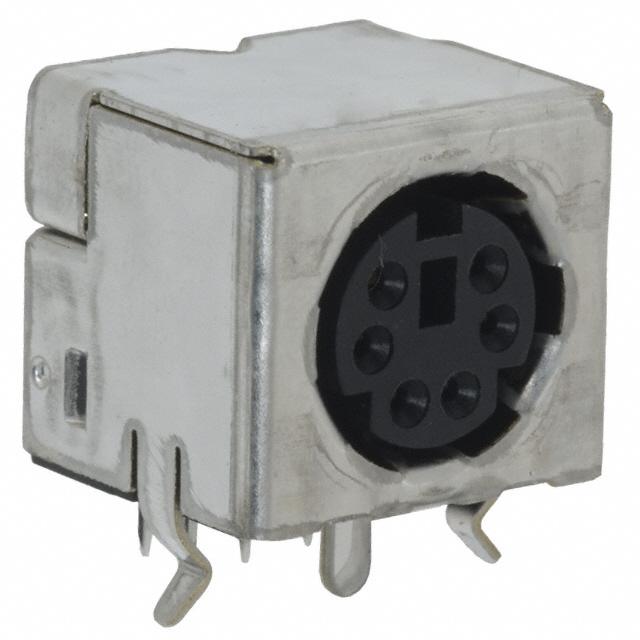

TE Connectivity AMP Connectors 749180-1

749180-1 TE Connectivity AMP Connectors
TE Connectivity AMP Connectors

Product Information

HTSUS:
8536.69.4020
RoHS Status:
RoHS non-compliant
Mounting Feature:
-
Operating Temperature:
-55°C ~ 105°C
Shell Size, MIL:
-
Number of Positions:
6
Contact Finish - Mating:
Gold
Backshell Material, Plating:
-
Shielding:
Shielded
Cable Opening:
-
title:
749180-1
Shell Material:
Thermoplastic
REACH Status:
REACH Unaffected
Current Rating (Amps):
1A
Applications:
Audio, Video
Primary Material:
Plastic
Material Flammability Rating:
UL94 V-0
Voltage Rating:
30VDC
Shell Size - Insert:
Mini DIN
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Pull
Termination:
Solder
Insert Material:
-
Orientation:
Keyed
Ingress Protection:
-
Features:
Board Lock
Mounting Type:
Through Hole, Right Angle
Shell Finish:
-
Color:
-
Series:
-
Packaging:
Tube
Contact Finish Thickness - Mating:
30.0µin (0.76µm)
Contact Material:
Copper Alloy
Base Product Number:
749180
ECCN:
EAR99
Checking for live stock

This is manufactured by TE Connectivity AMP Connectors. The manufacturer part number is 749180-1. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs non-compliant. The product has -55°c ~ 105°c operating temperature range. The product carries possible position value of 6. It has nice contact finishing of gold. Furthermore, the product is shielded with shielded. It is made from highly reliable thermoplastic materials. In addition, it is reach unaffected. Additionally, the product's output is 1a. The product is widely employed in audio, video. The basic product material is plastic. It carries ul94 v-0 of material flammability rating. Moreover, the product has a nominal 30vdc voltage rating. The insert's size is mini din. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is 1 (unlimited). Furthermore, push-pull is the Fastening Type of the product. The product features solder termination style. The product has a keyed orientation. The splendid features of the product include board lock. The product is available in through hole, right angle configuration. In addition, tube is the available packaging type of the product. However, 30.0µin (0.76µm) is the "Contact Finish Thickness - Mating" of the product. The product is made from sturdy copper alloy materials. Moreover, it corresponds to 749180, a base product number of the product. The product is designated with the ear99 code number.
