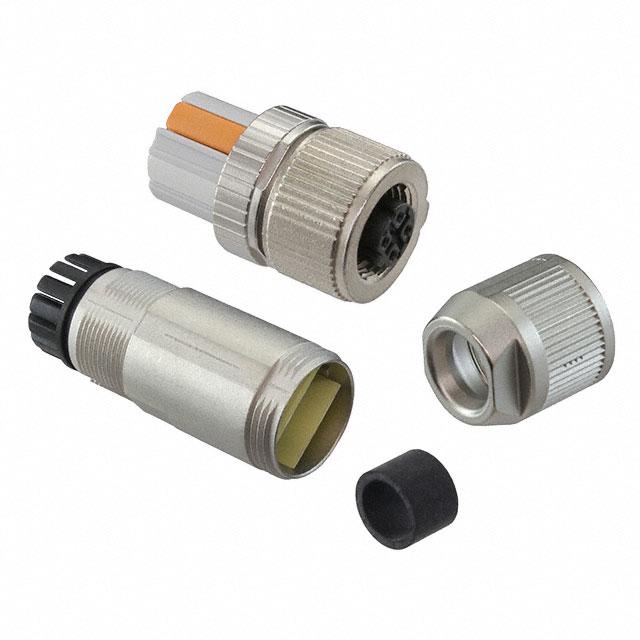

Phoenix Contact 1424683

1424683 Phoenix Contact
1424683
Phoenix Contact

Product Information

Current Rating:
4.0A
Pole Format:
4P
Housing Material:
Zinc
Shell Size:
13
Outer Diameter:
19mm
Voltage Rating:
48.0 V , 60.0 V
Plug/Socket:
Plug
Contact Plating:
Nickel over Gold
Termination Method:
Push In, Screw
Shielded/Unshielded:
Shielded
Maximum Operating Temperature:
+85°C
IP Rating:
IP65, IP67
Body Orientation:
Straight
Contact Gender:
Female
Connector Size:
M12
Mating Type:
D Coded
Mounting Type:
Cable Mount
Series:
SACC
Coding:
D
Minimum Operating Temperature:
-40°C
Number of Contacts:
4
Contact Material:
Copper
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
-
Operating Temperature:
-40°C ~ 85°C
Shell Size, MIL:
-
Number of Positions:
4
Contact Finish - Mating:
Gold
Backshell Material, Plating:
Zinc Die Cast, Nickel
Shielding:
Shielded
Cable Opening:
0.157" ~ 0.315" (4.00mm ~ 8.00mm)
Shell Material:
Zinc Die Cast
REACH Status:
REACH Unaffected
Current Rating (Amps):
4A
Applications:
Data Management
Primary Material:
Metal
Material Flammability Rating:
UL94 V-0
Voltage Rating:
48VAC, 60VDC
Shell Size - Insert:
M12-4
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
Push-Twist
Termination:
Spring-Cage
standardLeadTime:
8 Weeks
Insert Material:
Polyamide (PA66), Nylon 6/6
Orientation:
D
Ingress Protection:
IP65/IP67 - Dust Tight, Water Resistant, Waterproof
Features:
Backshell, Coupling Nut
Mounting Type:
Free Hanging (In-Line)
Shell Finish:
Nickel
Color:
Silver
Series:
SACC
Packaging:
Bulk
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Tin
Base Product Number:
-
ECCN:
EAR99
RoHs Compliant
Checking for live stock

The 1424683 by Phoenix Contact are M12 connectors designed for reliable and efficient electrical connections in a variety of demanding environments. These robust connectors feature a compact design, ensuring easy installation and space-saving solutions for your applications. With high-quality materials and precise engineering, they provide excellent resistance to mechanical stress and environmental factors, ensuring longevity and durability. Their versatile design makes them suitable for various industries, facilitating seamless integration and enhanced performance.

Distinct Features & Benefits of 1424683 Phoenix Contact M12 Connectors:

  • 4-Position Configuration: Ensures secure connections for multiple signals in a single unit.
  • Robust Design: High-quality materials provide resistance to shock and vibration.
  • Easy Installation: Compact size allows for quick and hassle-free mounting.
  • Environmental Protection: Designed to withstand harsh conditions, enhancing reliability.
  • Versatile Compatibility: Ideal for multiple industrial applications.

Typical Applications of Phoenix Contact 1424683 Cable Connectors:

  • Automation and control systems
  • Robotics and machinery
  • Transportation and automotive sectors
  • Telecommunications and data transmission
  • Energy and power distribution systems.
