HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Voltage Rating:
60V
Mounting Feature:
-
Operating Temperature:
-40°C ~ 105°C
Shell Size, MIL:
-
Number of Positions:
5
Contact Finish - Mating:
Gold
Backshell Material, Plating:
-
Shielding:
-
Cable Opening:
-
Shell Material:
-
REACH Status:
REACH Affected
Current Rating (Amps):
4A
Applications:
-
Primary Material:
-
Material Flammability Rating:
UL94 V-0
Package:
Bulk
Shell Size - Insert:
M12-5
Connector Type:
Insert, Male Pins
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Fastening Type:
-
Termination:
Solder
standardLeadTime:
8 Weeks
Insert Material:
Polyamide (PA), Nylon
Orientation:
B
Ingress Protection:
IP67 - Dust Tight, Waterproof
Features:
Board Guide, Insert Only, Requires Shell
Mounting Type:
Surface Mount
Shell Finish:
-
Color:
-
Series:
SACC
Contact Finish Thickness - Mating:
-
Contact Material:
Copper Zinc
ECCN:
EAR99
Series:

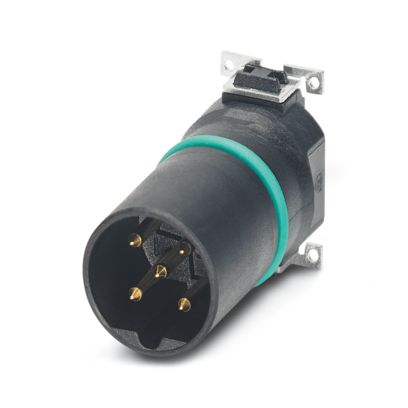

SACC-CIP-M12MSB-5P SMD R32
Insert Type:
Socket
IP Rating:
IP67
Number of Contacts:
5
Gender:
Male
Material:
Seal: Fluorocarbon Rubber, Contact Carrier: Polyamide, Contact: Copper Zinc
Standards/Approvals:
cULus, ID: E221474-20160506, IEC 61076-2-101
Minimum Operating Temperature:
-55°C
Shell Size:
M12
For Use With:
For Circular Connector Inserts
Product Type:
Circular Connector Insert
Maximum Operating Temperature:
105°C
