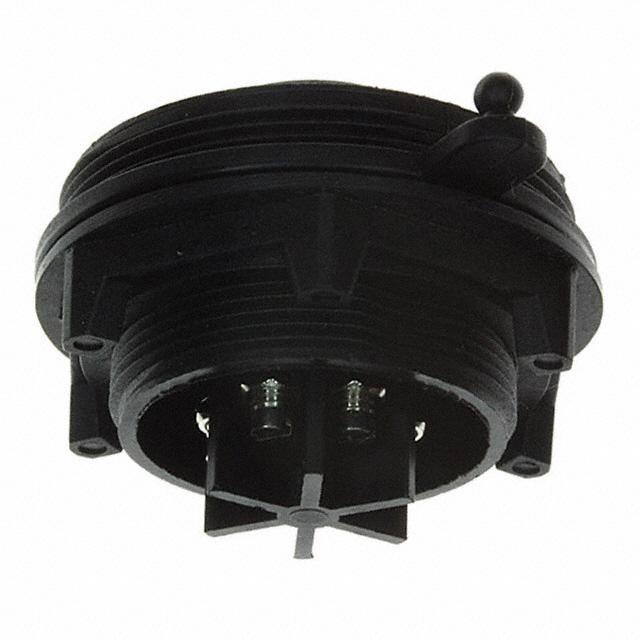

Bulgin PX0738/S

PX0738-S Bulgin PX0738/S
PX0738/S
PX0738/S
ET11120046
ET11120046
Circular Connector Assemblies
Bulgin

Product Information

Number of Contacts:
6
Current Rating:
5.0A
Mating Type:
Threaded
Mounting Type:
Panel Mount
IP Rating:
IP68
Series:
Standard Buccaneer
Body Orientation:
Straight
Voltage Rating:
250 V
Contact Gender:
Female
Termination Method:
Screw
Housing Material:
Polymer
Plug/Socket:
Socket
Connector Size:
Standard
Contact Plating:
Nickel
Shell Size:
38
Strain Relief:
No
Maximum Operating Temperature:
+70°C
Minimum Operating Temperature:
-20°C
Contact Material:
Brass
HTSUS:
8536.69.4020
RoHS Status:
ROHS3 Compliant
Mounting Feature:
Bulkhead - Rear Side Nut, Flange
Operating Temperature:
-20°C ~ 70°C
Shell Size, MIL:
-
Number of Positions:
6 (Power)
Backshell Material, Plating:
-
Shielding:
Unshielded
Cable Opening:
-
Shell Material:
Polyamide (PA), Nylon, Glass Filled
REACH Status:
REACH Unaffected
Current Rating (Amps):
3A
edacadModel:
PX0738/S Models
Applications:
-
Contact Finish - Mating:
Nickel
Primary Material:
Plastic
Material Flammability Rating:
UL94 HB
edacadModelUrl:
/en/models/1625899
Voltage Rating:
277VAC/DC
Shell Size - Insert:
-
Connector Type:
Receptacle, Female Sockets
Moisture Sensitivity Level (MSL):
Not Applicable
Fastening Type:
Threaded
Termination:
Screw
standardLeadTime:
22 Weeks
Insert Material:
Polyamide (PA), Nylon
Orientation:
Keyed
Ingress Protection:
IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Features:
-
Mounting Type:
Panel Mount
Shell Finish:
-
Color:
Black
Series:
Buccaneer®, Standard
Packaging:
Bulk
Contact Finish Thickness - Mating:
-
Contact Material:
Brass
Base Product Number:
PX0738
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Bulgin. The manufacturer part number is PX0738/S. The product contains 6 contacts. The product has a current rating of 5.0a. It is a type of threaded mating. The product is available in panel mount configuration. It is IP rated with ip68. The product standard buccaneer, is a highly preferred choice for users. It has straight body orientation. Moreover, the product has a nominal 250 v voltage rating. This female contact is widely suited for specific applications. It allows screw termination method. The product also features robust polymer housing material. It comprises a socket. The connector has standard size. The high-quality nickel is used as contact plating material. The shell has 38 size. It has a strain relief characteristic no . It has a maximum operating temperature of +70°c. Whereas, the minimum operating temperature of the product is -20°c. The product is made from sturdy brass materials. It is assigned with possible HTSUS value of 8536.69.4020. The product is rohs3 compliant. The product's mounting feature includes bulkhead - rear side nut, flange. The product has -20°c ~ 70°c operating temperature range. The product carries possible position value of 6 (power). Furthermore, the product is shielded with unshielded. It is made from highly reliable polyamide (pa), nylon, glass filled materials. In addition, it is reach unaffected. Additionally, the product's output is 3a. It has nice contact finishing of nickel. The basic product material is plastic. It carries ul94 hb of material flammability rating. Moreover, the product has a nominal 277vac/dc voltage rating. receptacle, female sockets Connector type offer robust functionality. Its typical moisture sensitivity level is not applicable. Furthermore, threaded is the Fastening Type of the product. The product features screw termination style. It has a long 22 weeks standard lead time. While it is also supplied with highly stable polyamide (pa), nylon insert material. The product has a keyed orientation. It is IP rated with ip68/ip69k - dust tight, water resistant, waterproof. It has a classic black colour. The product buccaneer®, standard, is a highly preferred choice for users. In addition, bulk is the available packaging type of the product. Moreover, it corresponds to px0738, a base product number of the product. The product is designated with the ear99 code number.
