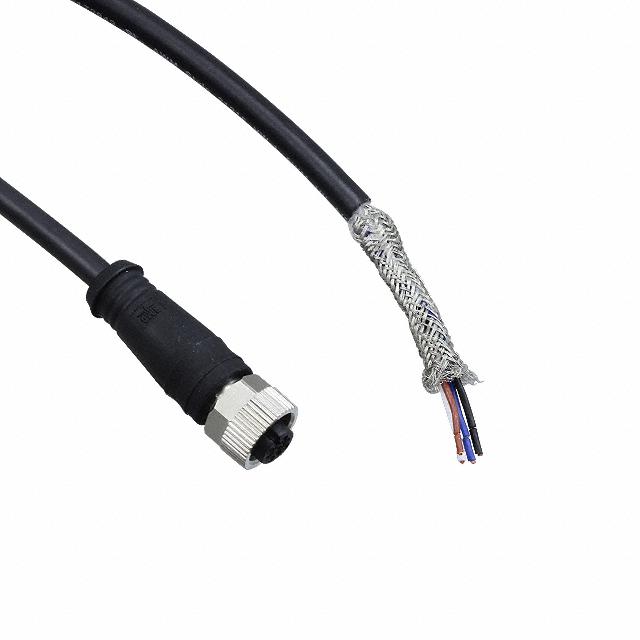

Micro-Change (M12) Single-Ended Cordset

1200698487 Micro-Change (M12) Single-Ended Cordset
1200698487
Molex

Product Information

American Wire Gauge:
22 AWG
IP Rating:
IP67
Conductor Material:
Brass
Series:
120069
Connector 1 Number of Contacts:
4
Coding:
A
Length:
5m
Connector 2:
Unterminated
Connector 1:
M12
1st Connector Orientation:
Keyed
2nd Connector Mounting Type:
-
HTSUS:
8544.42.9090
RoHS Status:
ROHS3 Compliant
Cable Material:
Thermoplastic Polyurethane (TPU)
Usage:
Industrial Environments
Shielding:
Shielded
1st Connector Number of Positions Loaded:
4
1st Connector Shell Size - Insert:
M12
REACH Status:
REACH Affected
2nd Connector Type:
Wire Leads
Assembly Configuration:
Standard
2nd Connector Number of Positions:
-
Package:
Bulk
Moisture Sensitivity Level (MSL):
Not Applicable
Length:
16.40' (5.00m)
1st Connector Gender:
Female Sockets
standardLeadTime:
13 Weeks
1st Connector Type:
Plug
2nd Connector Shell Size - Insert:
-
1st Connector Number of Positions:
5
Ingress Protection:
IP67 - Dust Tight, Waterproof
Color:
Black
Series:
Brad Micro-Change 120069
2nd Connector Orientation:
-
Cable Type:
Round
2nd Connector Number of Positions Loaded:
-
2nd Connector Gender:
-
1st Connector Mounting Type:
Free Hanging (In-Line)
Base Product Number:
120069
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is Micro-Change (M12) Single-Ended Cordset manufactured by Molex. The manufacturer part number is 1200698487. Features 22 awg - American Wire Gauge. It is IP rated with ip67. The conductor is made from brass material. The product 120069, is a highly preferred choice for users. There are 4 contacts on connector 1. The product is coded with a. Its accurate length is 5m. While the Connector 2 is unterminated. Connector 1 is m12. This connector has a keyed orientation. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs3 compliant. The cable is constructed from highly durable thermoplastic polyurethane (tpu) materials. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with shielded. While the loaded positions on first connector are 4. The size of the first connector's shell - insert is m12. In addition, it is reach affected. The second connector is the wire leads. The product is designed in a standard assembly configuration. It is shipped in bulk package . Its typical moisture sensitivity level is not applicable. Its accurate length is 16.40' (5.00m). The first connectors are female sockets. It has a long 13 weeks standard lead time. plug is the first connector. The first connector contains 5 positions. It is IP rated with ip67 - dust tight, waterproof. It has a classic black colour. The product brad micro-change 120069, is a highly preferred choice for users. It is a typical round cable. The first connector is configured with a free hanging (in-line) mounting type. Moreover, it corresponds to 120069, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
Multiple Devices Additional Tooling 13/Jun/2019(PCN Assembly/Origin)
pdf icon
1200698487 Drawing(Datasheets)
pdf icon
Mult Devs Tolerance 24/Apr/2023(PCN Design/Specification)
pdf icon
Mult Devs Dimension Analysis 03/Oct/2023(PCN Design/Specification)
