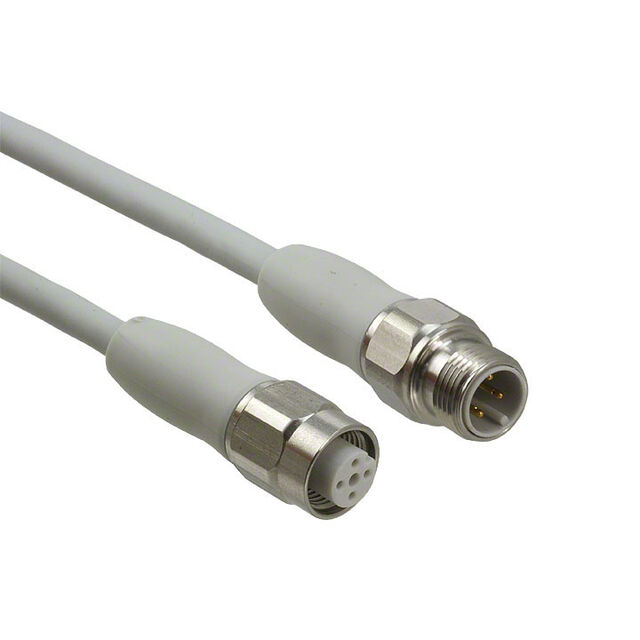

Phoenix Contact 1403993

1403993 Phoenix Contact
1403993
Phoenix Contact

Product Information

American Wire Gauge:
22 AWG
Current Rating:
4 A
Number of Cores:
4
Connector 2 Housing Gender:
Female
Outer Diameter:
5.55mm
Sheath Material:
PP
Cable Shape:
Twisted Pair
IP Rating:
IP65, IP67, IP68, IP69K
Voltage Rating:
250 V
Connector 1 Orientation:
Straight
Minimum Bend Radius:
5xD (Fixed), 10xD (Flexible)
Fire Behaviour:
Halogen Free
Connector 1 Gender:
Male
Length:
3m
Connector 2 Orientation:
Straight
Connector 2 Gender:
Female
Connector 2 Number of Contacts:
4
Conductor Material:
Bare Cu litz wires
Series:
SAC-4P-M12MS
Connector 1 Housing Gender:
Male
Connector 1 Number of Contacts:
4
Coding:
A
Sheath Colour:
Grey
Cross Sectional Area:
0.34 mm²
Connector 2:
M12
Connector 1:
M12
Insulation Material:
PP
1st Connector Orientation:
A
2nd Connector Mounting Type:
Free Hanging (In-Line)
HTSUS:
8544.42.9090
RoHS Status:
RoHS Compliant
Usage:
Industrial Environments
Shielding:
Shielded
1st Connector Number of Positions Loaded:
All
title:
1403993
1st Connector Shell Size - Insert:
M12
Cable Material:
Ethylene Propylene Diene Monomer (EPDM), Polypropylene (PP)
2nd Connector Type:
Plug
Assembly Configuration:
Standard
2nd Connector Number of Positions:
4
2nd Connector Number of Positions Loaded:
All
Manufacturer:
Phoenix Contact
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Length:
9.84' (3.00m)
1st Connector Gender:
Female Sockets
standardLeadTime:
6 Weeks
1st Connector Type:
Receptacle
2nd Connector Shell Size - Insert:
M12
1st Connector Number of Positions:
4
Ingress Protection:
IP65/IP67/IP68/IP69K - Dust Tight, Water Resistant, Waterproof
Color:
Gray
Series:
-
2nd Connector Orientation:
A
Cable Type:
Round
Packaging:
Bulk
2nd Connector Gender:
Male Pins
1st Connector Mounting Type:
Free Hanging (In-Line)
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by Phoenix Contact. The manufacturer part number is 1403993. Features 22 awg - American Wire Gauge. The product has a current rating of 4 a. The product consists of 4 cores. Additionally, its connector 2 housing is of female gender . Its outer diameter is 5.55mm. The sheath is constructed from durable and adorable pp material. Moreover, this cable has a twisted pair shape. It is IP rated with ip65, ip67, ip68, ip69k. Moreover, the product has a nominal 250 v voltage rating. The connector 1 has a straight orientation. It bears 5xd (fixed), 10xd (flexible) of minimum bend radius. The product has a halogen free fire behaviour. This connector 1 is a male. Its accurate length is 3m. In addition, its connector 2 orientation is straight . Connector 2 is a female connector. On the other hand, the connector 2 has 4 contacts. The conductor is made from bare cu litz wires material. The product sac-4p-m12ms, is a highly preferred choice for users. On the other hand, the gender of connector 1's housing is male. There are 4 contacts on connector 1. The product is coded with a. The sheath has an adorable grey colour. The product has 0.34 mm² cross section area. While the Connector 2 is m12. Connector 1 is m12. It has a robust pp insulation material. This connector has a a orientation. The second integral connector has a free hanging (in-line) mounting configuration. It is assigned with possible HTSUS value of 8544.42.9090. The product is rohs compliant. The product's typical Applications include uses in industrial environments. Furthermore, the product is shielded with shielded. While the loaded positions on first connector are all. The size of the first connector's shell - insert is m12. The cable is constructed from highly durable ethylene propylene diene monomer (epdm), polypropylene (pp) materials. The second connector is the plug. The product is designed in a standard assembly configuration. The number of positions on the second connector are 4. While the loaded positions on the second connector are all. The phoenix contact's product offers user-desired applications. Its typical moisture sensitivity level is 1 (unlimited). Its accurate length is 9.84' (3.00m). The first connectors are female sockets. It has a long 6 weeks standard lead time. receptacle is the first connector. The shell size of the second connector is m12. The first connector contains 4 positions. It is IP rated with ip65/ip67/ip68/ip69k - dust tight, water resistant, waterproof. It has a classic gray colour. In addition, second connectors are available in a orientation. It is a typical round cable. In addition, bulk is the available packaging type of the product. Second connectors come as male pins. The first connector is configured with a free hanging (in-line) mounting type. The product is designated with the ear99 code number.

pdf icon
Datasheet(Technical Reference)
pdf icon
1403993(Datasheets)
