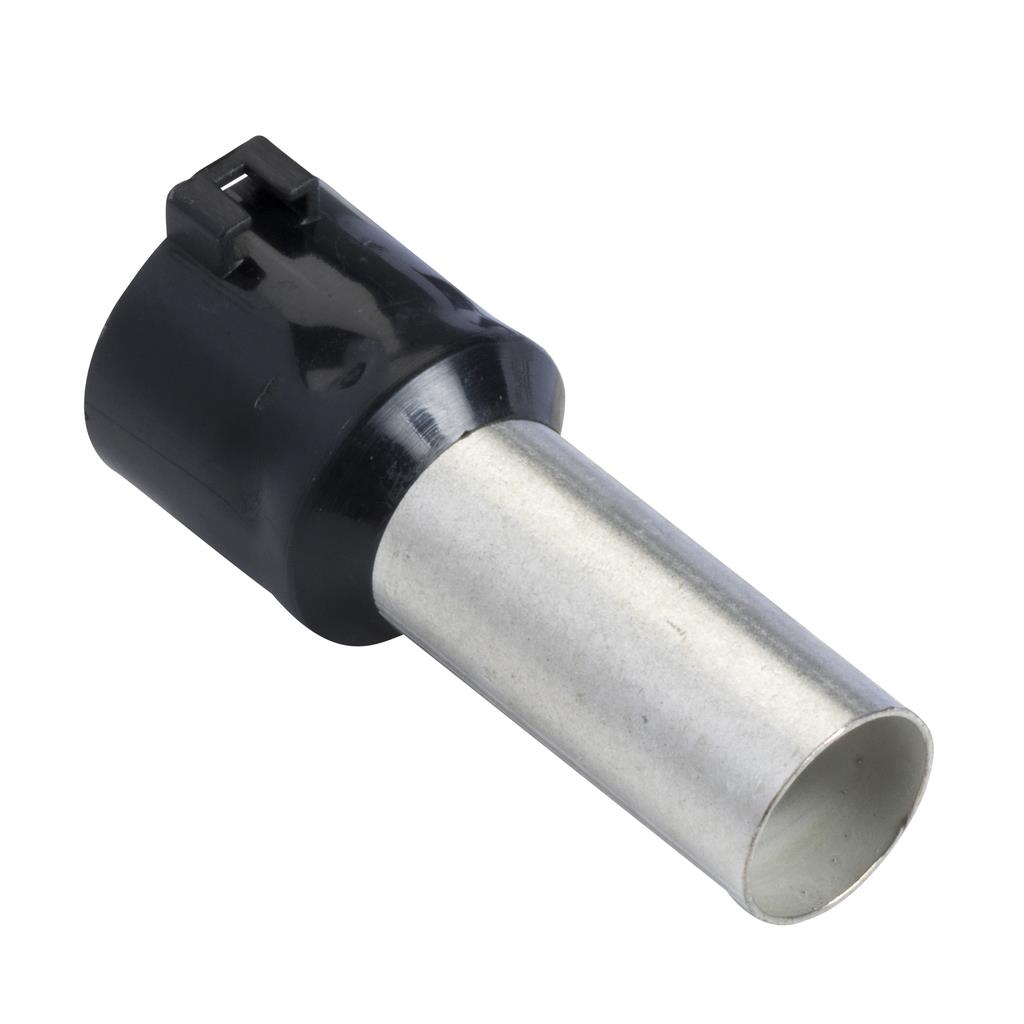

Schneider Electric DZ5CA253 Insulated Bootlace Ferrule, 17.5mm Pin Length, Black

Schneider Electric

Product Information

Better World Product:
Yes
Pin Length:
17.5mm
Maximum Wire Size AWG:
4AWG
Series:
Linergy DZ5
Colour:
Black
Standards/Approvals:
NF C 63-023
Overall Length:
36mm
Insulation:
Insulated
Pin Diameter:
8.15mm
Product Type:
Bootlace Ferrule
Terminal Material:
Copper
Insulation Material:
Plastic
Style:
-
HTSUS:
8536.90.4000
RoHS Status:
RoHS non-compliant
Length - Pin:
22.00mm
Type:
Single Wire with Marker
Length - Overall:
36.00mm
REACH Status:
REACH Unaffected
Manufacturer:
Schneider Electric
Moisture Sensitivity Level (MSL):
Not Applicable
Insulation:
Insulated
standardLeadTime:
5 Weeks
Color:
Black
Series:
Linergy TR
Packaging:
Box
Size:
4 AWG (25.00mm²)
ECCN:
EAR99
warehouse-1
1298 - In Stock

Ships in 5-7 business days

Each (In a Bag of 100)

Quantity
Unit Price (ex VAT)
Price
100
£ 0.83
£ 83.00
Mfr Part No:
DZ5CA253
Seller:
Schneider Electric (warehouse-1)
Origin:
Warranty:
Manufacturer
Data Code:
ET16891685
Order Today!
From: United Kingdom
Est Ship Date: 05 Jun, 2026
Est Fastest Delivery: 09 Jun, 2026

The Schneider Electric DZ5CA253 is a premium, insulated bootlace ferrule. It is designed for 25mm² cables. This high-quality component ensures neat and reliable terminal connections. It is a part of the Linergy DZ5 series. The single-wire marker system simplifies circuit identification.

Premium Features & Technical Information

  • Series: Linergy DZ5 (Linergy TR)
  • Compatible Wire Size: 4 AWG (25.00 mm²)
  • Pin Dimensions: 17.5 mm pin length | 8.15 mm pin diameter
  • Overall Length: 36.00 mm
  • Colour: Black (complies with French colour-coding standard)
  • Materials: High-conductivity copper terminal with robust plastic insulation
  • Standards & Approvals: Certified under NF C 63-023
  • Configuration: Single wire ferrule with integrated marker space.

Top-Tier Benefits for Users

The Schneider Electric DZ5CA253 insulated bootlace ferrule ensures secure terminations. These connectors safeguard electrical connections.

  • Eliminate wire splaying.
  • Maximise conductivity.
