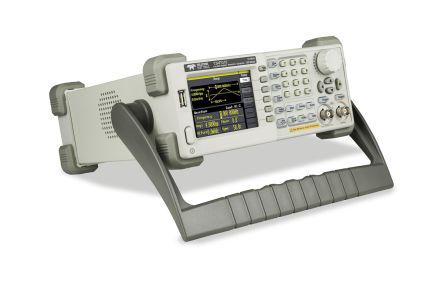

10 MHz, 125 MS/s, 16 kpts, 1 Ch, 20 Vpp

  • Enrgtech Part No: ET16942244
  • |
  • Manufacturer Part No:

    T3AFG10

  • |
  • Manufacturer: LeCroy
T3AFG10 10 MHz, 125 MS/s, 16 kpts, 1 Ch, 20 Vpp
T3AFG10
T3AFG10
LeCroy

Product Information

Display Type:
TFT LCD
Maximum Frequency Triangle Ramps:
300kHz
Rise - Fall Time:
<24ns
Dimensions:
260.3 x 107.2 x 295.7mm
Weight:
3.4kg
Minimum Frequency:
1 μHz
Minimum Pulse Train Repetition Rate:
16ns
Waveform Memory per Channel:
8 M points/ch, 16 k points/ch
Model Number p:
T3AFG10
Connector Type:
USB
Height:
295.7mm
Width:
107.2mm
Length:
260.3mm
Maximum Frequency:
10MHz
Minimum Operating Temperature:
0°C
Maximum Output Amplitude:
20V Pk-Pk
Maximum Operating Temperature:
+40°C
Resolution:
1 μHz
Arbitrary Waveforms:
Yes
Maximum Sampling Frequency:
1.2Gsps
RoHs Compliant
Checking for live stock

This is 10 MHz 125 MS/s 16 kpts 1 Ch 20 Vpp manufactured by LeCroy. The manufacturer part number is T3AFG10. It features a remarkable tft lcd display. The maximum frequency triangle ramps are about 300khz . It has about <24ns rise - fall time . The given dimensions of the product include 260.3 x 107.2 x 295.7mm. The typical product's weight is 3.4kg. It has a minimum 1 μhz frequency . Moreover, it has a minimum pulse train repetition rate of about 16ns . It exhibits 8 m points/ch, 16 k points/ch waveform memory per channel . While it has t3afg10 of model number. usb Connector type offer robust functionality. In addition, the height is 295.7mm. Furthermore, the product is 107.2mm wide. Its accurate length is 260.3mm. It features 10mhz of maximum frequency. Whereas, the minimum operating temperature of the product is 0°c. It has a maximum 20v pk-pk of output amplitude . It has a maximum operating temperature of +40°c. Features 1 μhz resolution. It includes arbitrary waveforms yes . It has a maximum 1.2gsps sampling frequency .

pdf icon
T3AFG Datasheet(Technical Reference)
pdf icon
T3AFG Factsheet(Technical Reference)
pdf icon
T3AFG Quick Start Guide(Technical Reference)
