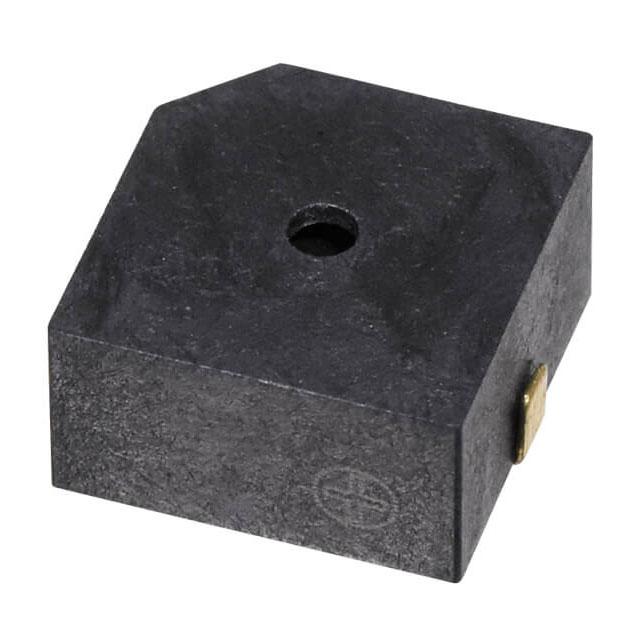

CUI Devices CMI-9705-0380-SMT-TR

CMI-9705-0380-SMT-TR CUI Devices
CMI-9705-0380-SMT-TR
CUI Devices

Product Information

Mounting Type:
Surface Mount
Drive Type:
Internal
Maximum Supply Voltage:
5V dc
Minimum Supply Voltage:
2V dc
Sound Level:
80dB
Ratings:
-
Port Location:
Top
HTSUS:
8531.80.9041
RoHS Status:
ROHS3 Compliant
Operating Temperature:
-40°C ~ 85°C
Approval Agency:
-
Input Type:
DC
Voltage Range:
2 ~ 5V
Voltage - Rated:
3 V
Height - Seated (Max):
0.224" (5.70mm)
Sound Pressure Level (SPL):
80dB @ 3V, 10cm
REACH Status:
REACH Unaffected
edacadModel:
CMI-9705-0380-SMT-TR Models
Current - Supply:
30mA
edacadModelUrl:
/en/models/10326194
Package:
Tape & Reel (TR)
Size / Dimension:
0.382" L x 0.382" W (9.70mm x 9.70mm)
Duration:
-
Termination:
Solder Pads
standardLeadTime:
18 Weeks
Driver Circuitry:
Indicator, Internally Driven
Moisture Sensitivity Level (MSL):
1 (Unlimited)
Ingress Protection:
-
Mounting Type:
Surface Mount
Operating Mode:
-
Series:
CMI
Frequency:
2.7kHz
Technology:
Magnetic
Base Product Number:
CMI-9705
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is manufactured by CUI Devices. The manufacturer part number is CMI-9705-0380-SMT-TR. The product is available in surface mount configuration. The product features a internal drive. The product requires a maximum 5v dc supply voltage . It has a minimum 2v dc supply voltage . Its sound level is about 80db . Port location: top. It is assigned with possible HTSUS value of 8531.80.9041. The product is rohs3 compliant. The product has -40°c ~ 85°c operating temperature range. It carries dc input type. While the voltage range is 2 ~ 5v. It also exhibits voltage rating of 3 v. It has the maximum seated height of 0.224" (5.70mm). Features 80db @ 3v, 10cm sound pressure level. In addition, it is reach unaffected. The current - supply of a bespoke product is 30ma. It is shipped in tape & reel (tr) package . The product's diameters include 0.382" l x 0.382" w (9.70mm x 9.70mm). The product features solder pads termination style. It has a long 18 weeks standard lead time. It has a indicator, internally driven driver circuitry. Its typical moisture sensitivity level is 1 (unlimited). The product cmi, is a highly preferred choice for users. Supplied with 2.7khz of frequency. This product use magnetic technology. Moreover, it corresponds to cmi-9705, a base product number of the product. The product is designated with the ear99 code number.

pdf icon
Datasheet - CMI-9705-0380-SMT-TR(Technical Reference)
pdf icon
CMI-9705-0380-SMT-TR Datasheet(Datasheets)
pdf icon
Buzzer Basics(Mfg Application Notes)
pdf icon
Understanding and Measuring Sensitivity in Audio Components(Mfg Application Notes)
