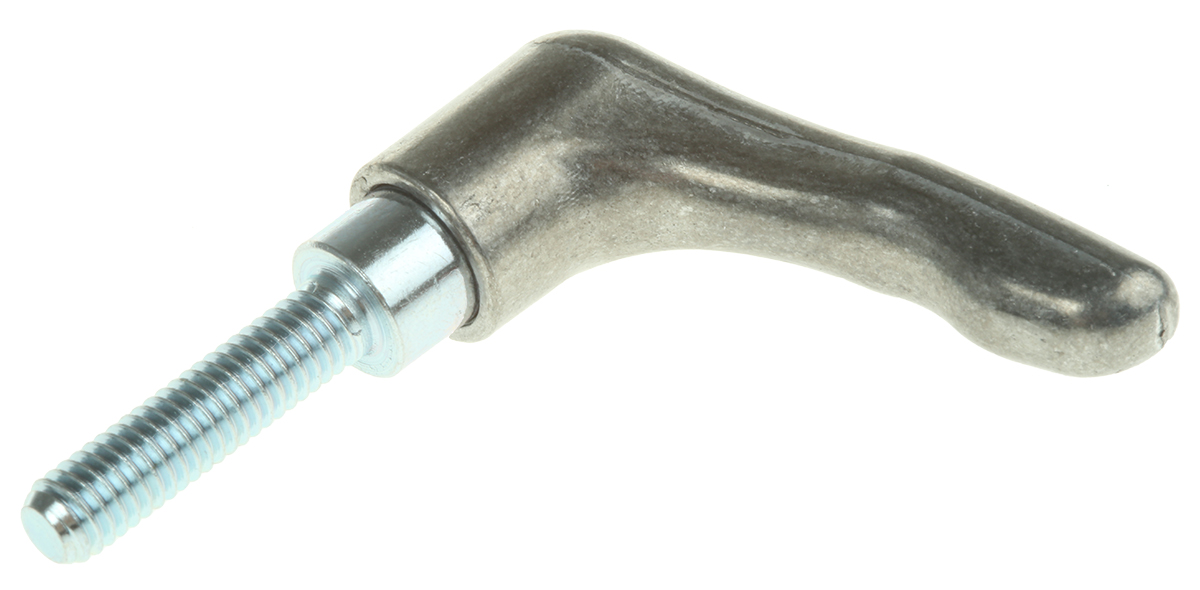

Type HV Allows quick and easy release/locking where frequent movement/adjustment is required Replaces the screw supplied with the clamp Handle made of zinc pressure casting according to DIN 1743, steel parts quality class 5.8, galvanized Dimensions (mm) HV 6x25 HV 8x35 HV 10x50 HV 10x60 HV 6x25 HV 8x35 HV 10x50 HV 10x60 A 40 40 80 95 G 20° 20° 20° 20° B 33.5 33.5 55 64 H 25 35 50 60 C 27 27 37.5 42.5 K 10 13 16 16 D M6 M6 M10 M10 L 37.5 49 59 68 E 6.5 6.5 10 10 M 13.5 18 26 26 Compatibility with Clamps Lever Size Clamp Size HV 6x25 M6 x 25 K, W, WE, FK 12 & 18 HV 8x35 M8 x 35 K, KR,W WE, FK, FS, GW, GP, GF, GWZ, GPZ, GFZ 25 & 30 HV 10x50 M10 x 50 K, W, WE, FK, FS, GW, GP, GF 40 HV 10x60 M10 x 60 K, KD*, W, WE, FK, FS, GW, DP, GF 50 * Fits both size 40 and 50 clamp sizes.
see also : Liquid Acrylic Adhesive
For more information please check the datasheets.
