onsemi, 8.2V Zener Diode 5% 5 W Through Hole 2-Pin DO-15

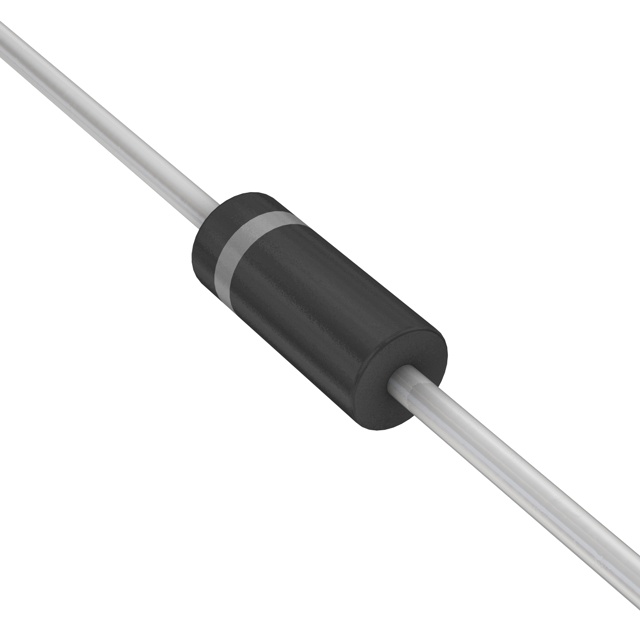

1N5344BRLG onsemi, 8.2V Zener Diode 5% 5 W Through Hole 2-Pin DO-15
1N5344BRLG
1N5344BRLG
onsemi

Product Information

Nominal Zener Voltage:
8.2V
Dimensions:
8.89 x 3.68 x 3.68mm
Mounting Type:
Through Hole
Maximum Zener Impedance:
1.5Ω
Maximum Operating Temperature:
+200 °C
Maximum Reverse Leakage Current:
10µA
Maximum Power Dissipation:
5 W
Package Type:
DO-15
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
150mA
HTSUS:
8541.10.0050
RoHS Status:
ROHS3 Compliant
Package / Case:
T-18, Axial
Operating Temperature:
-65°C ~ 200°C
Impedance (Max) (Zzt):
1.5 Ohms
Tolerance:
±5%
title:
1N5344BRLG
REACH Status:
REACH Unaffected
edacadModel:
1N5344BRLG Models
edacadModelUrl:
/en/models/918035
Voltage - Zener (Nom) (Vz):
8.2 V
Voltage - Forward (Vf) (Max) @ If:
1.2 V @ 1 A
Moisture Sensitivity Level (MSL):
Not Applicable
standardLeadTime:
11 Weeks
Current - Reverse Leakage @ Vr:
10 µA @ 6.2 V
Mounting Type:
Through Hole
Series:
-
Supplier Device Package:
Axial
Packaging:
Tape & Reel (TR)
Power - Max:
5 W
Base Product Number:
1N5344
ECCN:
EAR99
RoHs Compliant
Checking for live stock

This is 8.2V Zener Diode 5% 5 W Through Hole 2-Pin DO-15 manufactured by onsemi. The manufacturer part number is 1N5344BRLG. Its nominal Zener voltage is 8.2v. The given dimensions of the product include 8.89 x 3.68 x 3.68mm. The product is available in through hole configuration. While it has 1.5ω of maximum Zener impedance. It has a maximum operating temperature of +200 °c. The product has a maximum 10µa of reverse leakage current. Provides up to 5 w maximum power dissipation. The package is a sort of do-15. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of voltage regulator Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 150ma test current. It is assigned with possible HTSUS value of 8541.10.0050. The product is rohs3 compliant. Moreover, the product comes in t-18, axial. The product has -65°c ~ 200°c operating temperature range. Moreover, 1.5 ohms is the maximum impedance value of the product. It features ±5% of tolerance value. In addition, it is reach unaffected. The nominal voltage of the Zener includes 8.2 v. The product has a maximum forward voltage of 1.2 v @ 1 a. Its typical moisture sensitivity level is not applicable. It has a long 11 weeks standard lead time. 10 µa @ 6.2 v is the reverse leakage value of a bespoke product. axial is the supplier device package value. In addition, tape & reel (tr) is the available packaging type of the product. The maximum power of the product is 5 w. Moreover, it corresponds to 1n5344, a base product number of the product. The product is designated with the ear99 code number.
