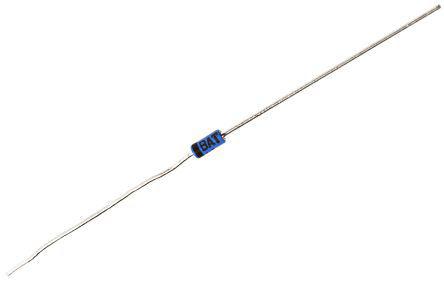

4.7V 500MW 5% ZENER DO35

Enrgtech Part No: ET18048766
|
Manufacturer Part No:
1N5230B
|
Manufacturer: ON Semiconductor

(0)

Product Information

Nominal Zener Voltage:

4.7V

Dimensions:

1.91 Dia. x 4.56mm

Mounting Type:

Through Hole

Forward Current:

200mA

Typical Voltage Temperature Coefficient:

±0.03%/°C

Maximum Operating Temperature:

+200 °C

Maximum Reverse Leakage Current:

5µA

Maximum Zener Impedance:

19 Ω @ 20 mA, 1900 Ω @ 0.25 mA

Forward Voltage:

1.2V

Package Type:

DO-35

Number of Elements per Chip:

Minimum Operating Temperature:

-65 °C

Checking for live stock

This is 4.7V 500MW 5% ZENER DO35 manufactured by ON Semiconductor. The manufacturer part number is 1N5230B. Its nominal Zener voltage is 4.7v. The given dimensions of the product include 1.91 dia. x 4.56mm. The product is available in through hole configuration. It features 200ma forward current. The product has a typical ±0.03%/°c voltage temperature coefficient . It has a maximum operating temperature of +200 °c. The product has a maximum 5µa of reverse leakage current. While it has 19 ω @ 20 ma, 1900 ω @ 0.25 ma of maximum Zener impedance. The forward voltage is 1.2v. The package is a sort of do-35. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Provides up to 500 mw maximum power dissipation. The Zener is a type of general purpose Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 20ma test current.

Datasheet 1N5230B(Technical Reference)
