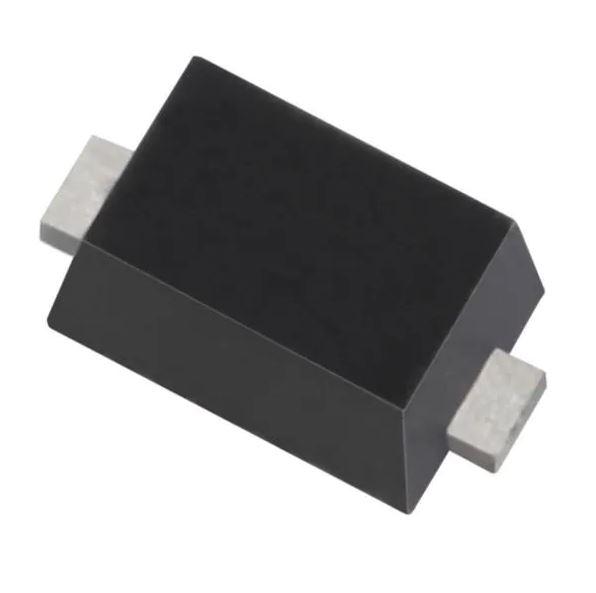

Zener Diode SOD923 T&R 10K

DZ9F7V5S92-7 Zener Diode SOD923 T&R 10K
DiodesZetex

Product Information

Nominal Zener Voltage:
7.5V
Dimensions:
0.8 x 0.6 x 0.37mm
Mounting Type:
Surface Mount
Forward Current:
10mA
Typical Voltage Temperature Coefficient:
5.3mV/°C
Maximum Reverse Leakage Current:
500nA
Maximum Zener Impedance:
60Ω
Forward Voltage:
0.9V
Package Type:
SOD-923
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Power Dissipation:
200mW
Zener Type:
Ultra Small
Zener Voltage Tolerance:
±5%
Maximum Operating Temperature:
+150 °C
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Zener Diode SOD923 T&R 10K manufactured by DiodesZetex. The manufacturer part number is DZ9F7V5S92-7. Its nominal Zener voltage is 7.5v. The given dimensions of the product include 0.8 x 0.6 x 0.37mm. The product is available in surface mount configuration. It features 10ma forward current. The product has a typical 5.3mv/°c voltage temperature coefficient . The product has a maximum 500na of reverse leakage current. While it has 60ω of maximum Zener impedance. The forward voltage is 0.9v. The package is a sort of sod-923. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Provides up to 200mw maximum power dissipation. The Zener is a type of ultra small Zener with unique features. It has ±5% Zener voltage tolerance. It has a maximum operating temperature of +150 °c. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
Datasheet DZ9F7V5S92-7(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search DZ9F7V5S92-7 on website for other similar products.
We accept all major payment methods for all products including ET17497837. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with DZ9F7V5S92-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Zener Diode SOD923 T&R 10K. You can also check on our website or by contacting our customer support team for further order details on Zener Diode SOD923 T&R 10K.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET17497837 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET17497837.
Yes. We ship DZ9F7V5S92-7 Internationally to many countries around the world.
