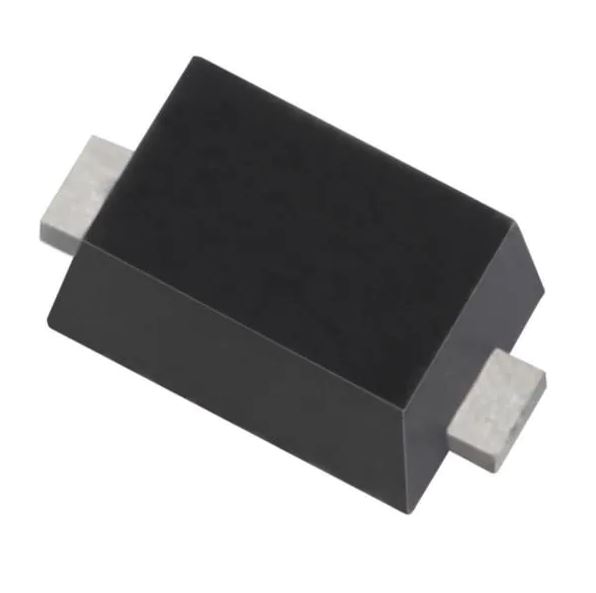

Zener Diode SOD923 T&R 10K

DZ9F5V6S92-7 Zener Diode SOD923 T&R 10K
DiodesZetex

Product Information

Nominal Zener Voltage:
5.6V
Dimensions:
0.8 x 0.6 x 0.37mm
Mounting Type:
Surface Mount
Forward Current:
10mA
Typical Voltage Temperature Coefficient:
2.5mV/°C
Maximum Reverse Leakage Current:
1µA
Maximum Zener Impedance:
200Ω
Forward Voltage:
0.9V
Package Type:
SOD-923
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Power Dissipation:
200mW
Zener Type:
Ultra Small
Zener Voltage Tolerance:
±5%
Maximum Operating Temperature:
+150 °C
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Zener Diode SOD923 T&R 10K manufactured by DiodesZetex. The manufacturer part number is DZ9F5V6S92-7. Its nominal Zener voltage is 5.6v. The given dimensions of the product include 0.8 x 0.6 x 0.37mm. The product is available in surface mount configuration. It features 10ma forward current. The product has a typical 2.5mv/°c voltage temperature coefficient . The product has a maximum 1µa of reverse leakage current. While it has 200ω of maximum Zener impedance. The forward voltage is 0.9v. The package is a sort of sod-923. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Provides up to 200mw maximum power dissipation. The Zener is a type of ultra small Zener with unique features. It has ±5% Zener voltage tolerance. It has a maximum operating temperature of +150 °c. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
Datasheet DZ9F5V6S92-7(Technical Reference)
