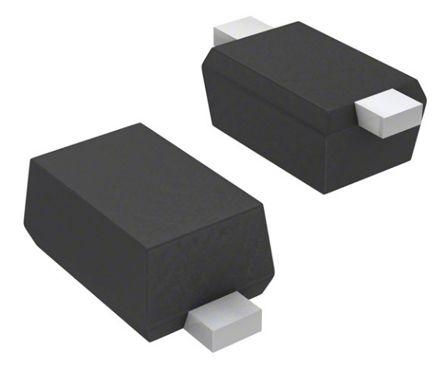

ROHM Zener Diode, 13.49V 150 mW SMT 2-Pin SOD-523

EDZVT2R13B ROHM Zener Diode, 13.49V 150 mW SMT 2-Pin SOD-523
ROHM

Product Information

Nominal Zener Voltage:
13.49V
Dimensions:
1.25 x 0.85 x 0.7mm
Mounting Type:
Surface Mount
Power Dissipation:
150mW
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
100nA
Maximum Zener Impedance:
80Ω
Height:
0.7mm
Width:
0.85mm
Length:
1.25mm
Zener Type:
Voltage Regulator
Number of Elements per Chip:
1
Maximum Power Dissipation:
150 mW
Package Type:
SOD-523
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Zener Diode 13.49V 150 mW SMT 2-Pin SOD-523 manufactured by ROHM. The manufacturer part number is EDZVT2R13B. Its nominal Zener voltage is 13.49v. The given dimensions of the product include 1.25 x 0.85 x 0.7mm. The product is available in surface mount configuration. It has about 150mw power dissipation . It has a maximum operating temperature of +150 °c. The product has a maximum 100na of reverse leakage current. While it has 80ω of maximum Zener impedance. In addition, the height is 0.7mm. Furthermore, the product is 0.85mm wide. Its accurate length is 1.25mm. The Zener is a type of voltage regulator Zener with unique features. It consists of 1 elements per chip. Provides up to 150 mw maximum power dissipation. The package is a sort of sod-523. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
