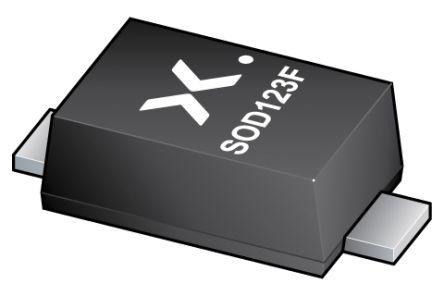

Nexperia Zener Diode, 24V 40 (Peak Reverse Power Dissipation) W, 830 (Total Power Dissipation) mW SMT 2-Pin SOD-123F

Enrgtech Part No: ET16837511
|
Manufacturer Part No:
BZT52H-C24,115
|
Manufacturer: Nexperia

BZT52H-C24-115 Nexperia Zener Diode, 24V 40 (Peak Reverse Power Dissipation) W, 830 (Total Power Dissipation) mW SMT 2-Pin SOD-123F

Product Information

Nominal Zener Voltage:

24V

Dimensions:

2.7 x 1.7 x 1.2mm

Mounting Type:

Surface Mount

Forward Current:

250mA

Typical Voltage Temperature Coefficient:

22mV/K

Maximum Operating Temperature:

+150 °C

Maximum Power Dissipation:

830 mW

Automotive Standard:

AEC-Q101

Forward Voltage:

0.9V

Package Type:

SOD-123F

Number of Elements per Chip:

Minimum Operating Temperature:

-65 °C

Checking for live stock

This is Zener Diode 24V 40 (Peak Reverse Power Dissipation) W 830 (Total Power Dissipation) mW SMT 2-Pin SOD-123F manufactured by Nexperia. The manufacturer part number is BZT52H-C24,115. Its nominal Zener voltage is 24v. The given dimensions of the product include 2.7 x 1.7 x 1.2mm. The product is available in surface mount configuration. It features 250ma forward current. The product has a typical 22mv/k voltage temperature coefficient . It has a maximum operating temperature of +150 °c. Provides up to 830 mw maximum power dissipation. The product complies with automotive standard - aec-q101. The forward voltage is 0.9v. The package is a sort of sod-123f. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of general purpose Zener with unique features. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
