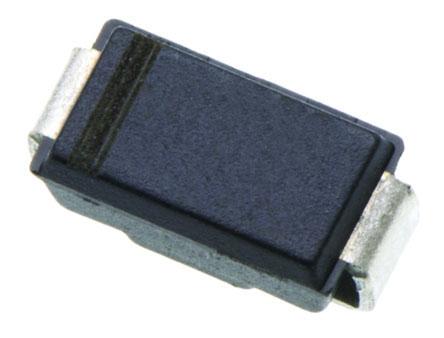

Fagor Electronica Zener Diode, 16V ±5% 3.25 W SMT 2-Pin DO-214AC

Z1SMA16-TRTB Fagor Electronica Zener Diode, 16V ±5% 3.25 W SMT 2-Pin DO-214AC
Fagor Electronica

Product Information

Nominal Zener Voltage:
16V
Dimensions:
5.1 x 2.6 x 2mm
Mounting Type:
Surface Mount
Forward Current:
0.5A
Typical Voltage Temperature Coefficient:
+0.085%/°C
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Maximum Zener Impedance:
15Ω
Forward Voltage:
1V
Package Type:
DO-214AC (SMA)
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Power Dissipation:
3.25 W
Zener Voltage Tolerance:
±5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
25mA
RoHs Compliant
Checking for live stock

This is Zener Diode 16V ±5% 3.25 W SMT 2-Pin DO-214AC manufactured by Fagor Electronica. The manufacturer part number is Z1SMA16 TRTB. Its nominal Zener voltage is 16v. The given dimensions of the product include 5.1 x 2.6 x 2mm. The product is available in surface mount configuration. It features 0.5a forward current. The product has a typical +0.085%/°c voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. While it has 15ω of maximum Zener impedance. The forward voltage is 1v. The package is a sort of do-214ac (sma). It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Provides up to 3.25 w maximum power dissipation. It has ±5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 25ma test current.
