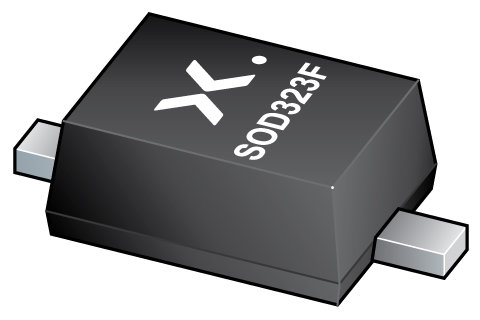

Nexperia Zener Diode, 6V 100 (Peak Reverse Power Dissipation) W, 500 (Total Power Dissipation) mW SMT 2-Pin

Enrgtech Part No: ET16800734
|
Manufacturer Part No:
TDZ6V2J,115
|
Manufacturer: Nexperia

TDZ6V2J-115 Nexperia Zener Diode, 6V 100 (Peak Reverse Power Dissipation) W, 500 (Total Power Dissipation) mW SMT 2-Pin

Product Information

Nominal Zener Voltage:

Dimensions:

1.8 x 1.35 x 0.8mm

Mounting Type:

Surface Mount

Forward Current:

250mA

Typical Voltage Temperature Coefficient:

3.7mV/K

Maximum Operating Temperature:

+150 °C

Maximum Power Dissipation:

500 mW

Automotive Standard:

AEC-Q101

Forward Voltage:

1.1V

Package Type:

SC-90, SOD-323F

Number of Elements per Chip:

Minimum Operating Temperature:

-55 °C

Checking for live stock

This is Zener Diode 6V 100 (Peak Reverse Power Dissipation) W 500 (Total Power Dissipation) mW SMT 2-Pin manufactured by Nexperia. The manufacturer part number is TDZ6V2J,115. Its nominal Zener voltage is 6v. The given dimensions of the product include 1.8 x 1.35 x 0.8mm. The product is available in surface mount configuration. It features 250ma forward current. The product has a typical 3.7mv/k voltage temperature coefficient . It has a maximum operating temperature of +150 °c. Provides up to 500 mw maximum power dissipation. The product complies with automotive standard - aec-q101. The forward voltage is 1.1v. The package is a sort of sc-90, sod-323f. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The Zener is a type of general purpose Zener with unique features. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.
