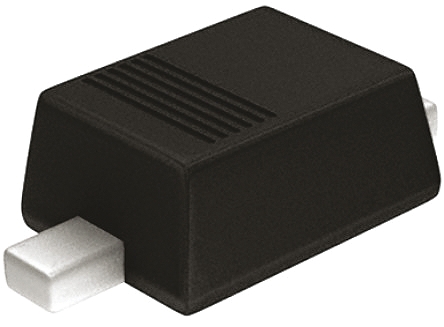

NXP Zener Diode, 5.6V 2% 180 W SMT 2-Pin SOD-323F

TDZ5V6J-115 NXP Zener Diode, 5.6V 2% 180 W SMT 2-Pin SOD-323F
Nexperia

Product Information

Nominal Zener Voltage:
5.6V
Dimensions:
1.8 x 1.35 x 0.8mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
500mW
Typical Voltage Temperature Coefficient:
-2 → 2.5mV/K
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
10µA
Package Type:
SOD-323F
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Zener Type:
General Purpose
Zener Voltage Tolerance:
2%
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is NXP Zener Diode 5.6V 2% 180 W SMT 2-Pin SOD-323F manufactured by Nexperia. The manufacturer part number is TDZ5V6J,115. Its nominal Zener voltage is 5.6v. The given dimensions of the product include 1.8 x 1.35 x 0.8mm. The product is available in surface mount configuration. Provides up to 500mw maximum power dissipation. The product has a typical -2 → 2.5mv/k voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 10µa of reverse leakage current. The package is a sort of sod-323f. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The Zener is a type of general purpose Zener with unique features. It has 2% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
TDZxJ series Single Zener Diodes Data Sheet(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TDZ5V6J,115 on website for other similar products.
We accept all major payment methods for all products including ET16800733. Please check your shopping cart at the time of order.
You can order Nexperia brand products with TDZ5V6J,115 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of NXP Zener Diode, 5.6V 2% 180 W SMT 2-Pin SOD-323F. You can also check on our website or by contacting our customer support team for further order details on NXP Zener Diode, 5.6V 2% 180 W SMT 2-Pin SOD-323F.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16800733 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16800733.
Yes. We ship TDZ5V6J,115 Internationally to many countries around the world.
