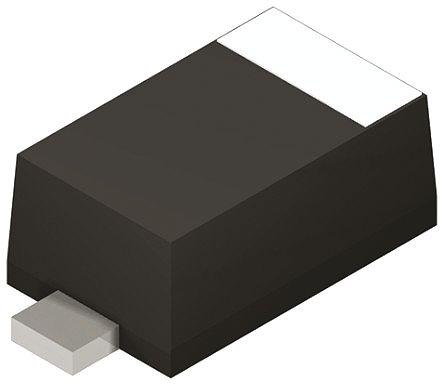

Nexperia Zener Diode, 24V 2.5% 1 W SMT 2-Pin SOD-123F

Enrgtech Part No: ET16800097
|
Manufacturer Part No:
NZH24C,115
|
Manufacturer: Nexperia

NZH24C-115 Nexperia Zener Diode, 24V 2.5% 1 W SMT 2-Pin SOD-123F

Product Information

Nominal Zener Voltage:

24V

Dimensions:

2.7 x 1.7 x 1.2mm

Mounting Type:

Surface Mount

Maximum Power Dissipation:

1 W

Maximum Operating Temperature:

+150 °C

Maximum Reverse Leakage Current:

40nA

Package Type:

SOD-123F

Number of Elements per Chip:

Minimum Operating Temperature:

-55 °C

Zener Type:

General Purpose

Zener Voltage Tolerance:

2.5%

Diode Configuration:

Single

Checking for live stock

This is Zener Diode 24V 2.5% 1 W SMT 2-Pin SOD-123F manufactured by Nexperia. The manufacturer part number is NZH24C,115. Its nominal Zener voltage is 24v. The given dimensions of the product include 2.7 x 1.7 x 1.2mm. The product is available in surface mount configuration. Provides up to 1 w maximum power dissipation. It has a maximum operating temperature of +150 °c. The product has a maximum 40na of reverse leakage current. The package is a sort of sod-123f. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The Zener is a type of general purpose Zener with unique features. It has 2.5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

NZH Series Single Zener Diodes Data Sheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)
