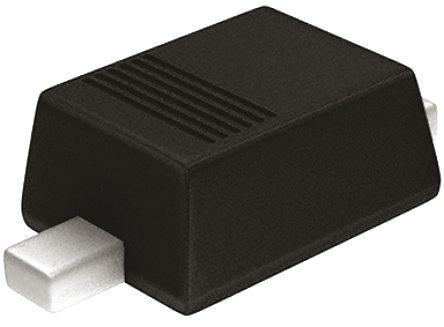

NXP Zener Diode, 3.9V 5% 550 mW SMT 2-Pin SOD-323F

BZX84J-C3V9-115 NXP Zener Diode, 3.9V 5% 550 mW SMT 2-Pin SOD-323F
Nexperia

Product Information

Nominal Zener Voltage:
3.9V
Dimensions:
1.8 x 1.35 x 0.8mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
550 mW
Typical Voltage Temperature Coefficient:
-3.5 → 0mV/K
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
3µA
Package Type:
SOD-323F
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Zener Type:
General Purpose
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is NXP Zener Diode 3.9V 5% 550 mW SMT 2-Pin SOD-323F manufactured by Nexperia. The manufacturer part number is BZX84J-C3V9,115. Its nominal Zener voltage is 3.9v. The given dimensions of the product include 1.8 x 1.35 x 0.8mm. The product is available in surface mount configuration. Provides up to 550 mw maximum power dissipation. The product has a typical -3.5 → 0mv/k voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 3µa of reverse leakage current. The package is a sort of sod-323f. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The Zener is a type of general purpose Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
BZX84J Series Single Zener Diodes Data Sheet(Technical Reference)
