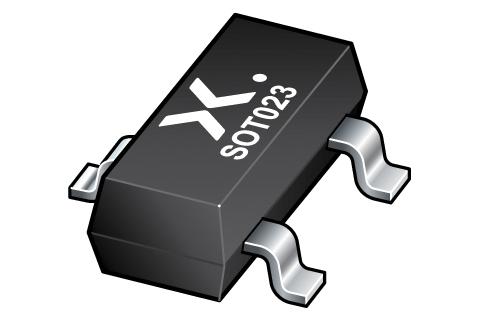

Nexperia Zener Diode, 56V ±5% 250 (Total Power Dissipation) mW, 40 (Peak Reverse Power Dissipation) W SMT 3-Pin

Enrgtech Part No: ET16799985
|
Manufacturer Part No:
BZX84-C56,215
|
Manufacturer: Nexperia

BZX84-C56-215 Nexperia Zener Diode, 56V ±5% 250 (Total Power Dissipation) mW, 40 (Peak Reverse Power Dissipation) W SMT 3-Pin

Product Information

Nominal Zener Voltage:

56V

Dimensions:

3 x 1.4 x 1.1mm

Mounting Type:

Surface Mount

Forward Current:

200mA

Typical Voltage Temperature Coefficient:

57mV/K

Maximum Operating Temperature:

+150 °C

Maximum Power Dissipation:

250 mW

Automotive Standard:

AEC-Q101

Forward Voltage:

0.9V

Package Type:

TO-236AB

Number of Elements per Chip:

Minimum Operating Temperature:

-65 °C

Checking for live stock

This is Zener Diode 56V ±5% 250 (Total Power Dissipation) mW 40 (Peak Reverse Power Dissipation) W SMT 3-Pin manufactured by Nexperia. The manufacturer part number is BZX84-C56,215. Its nominal Zener voltage is 56v. The given dimensions of the product include 3 x 1.4 x 1.1mm. The product is available in surface mount configuration. It features 200ma forward current. The product has a typical 57mv/k voltage temperature coefficient . It has a maximum operating temperature of +150 °c. Provides up to 250 mw maximum power dissipation. The product complies with automotive standard - aec-q101. The forward voltage is 0.9v. The package is a sort of to-236ab. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of voltage regulator Zener with unique features. It has ±5% Zener voltage tolerance. The diode features a single configuration. It contains 3 pins. In addition, it has 5ma test current.

Datasheet(Technical Reference)

ESD Control Selection Guide V1(Technical Reference)

Your Rating

Reviews

Be the first to review.

FAQs

Yes. You can also search BZX84-C56,215 on website for other similar products.

We accept all major payment methods for all products including ET16799985. Please check your shopping cart at the time of order.

You can order Nexperia brand products with BZX84-C56,215 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.

Yes. Our products in Zener Diodes category are shipped in lowest possible time.

You will get a confirmation email regarding your order of Nexperia Zener Diode, 56V ±5% 250 (Total Power Dissipation) mW, 40 (Peak Reverse Power Dissipation) W SMT 3-Pin. You can also check on our website or by contacting our customer support team for further order details on Nexperia Zener Diode, 56V ±5% 250 (Total Power Dissipation) mW, 40 (Peak Reverse Power Dissipation) W SMT 3-Pin.

We use our internationally recognized delivery partners UPS/DHL. Collection of ET16799985 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Nexperia" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16799985.

Yes. We ship BZX84-C56,215 Internationally to many countries around the world.
