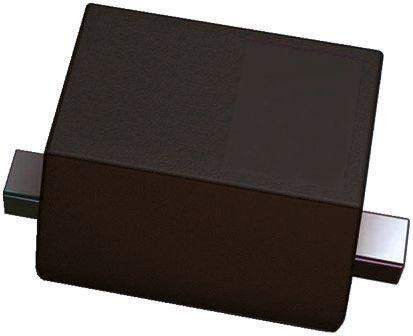

Nexperia Zener Diode, 4.7V 5% 300 mW SMT 2-Pin SOD-523

BZX585-C4V7-115 Nexperia Zener Diode, 4.7V 5% 300 mW SMT 2-Pin SOD-523
Nexperia

Product Information

Nominal Zener Voltage:
4.7V
Dimensions:
1.25 x 0.85 x 0.65mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
80Ω
Typical Voltage Temperature Coefficient:
-1.2mV/K
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
3µA
Maximum Power Dissipation:
300 mW
Package Type:
SOD-523
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Zener Diode 4.7V 5% 300 mW SMT 2-Pin SOD-523 manufactured by Nexperia. The manufacturer part number is BZX585-C4V7,115. Its nominal Zener voltage is 4.7v. The given dimensions of the product include 1.25 x 0.85 x 0.65mm. The product is available in surface mount configuration. While it has 80ω of maximum Zener impedance. The product has a typical -1.2mv/k voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 3µa of reverse leakage current. Provides up to 300 mw maximum power dissipation. The package is a sort of sod-523. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of voltage regulator Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
BZX585 Series, Voltage Regulator Diodes Data Sheet(Technical Reference)
