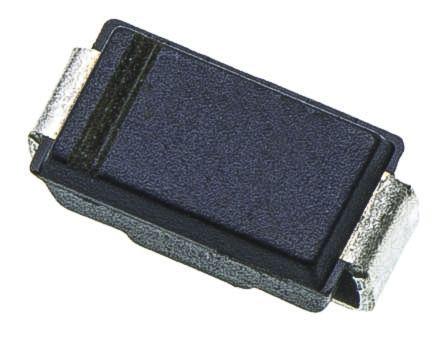

ROHM Zener Diode, 7.7V 1 W SMT 2-Pin DO-214AC (SMA), PMDS

PTZTE256-8B ROHM Zener Diode, 7.7V 1 W SMT 2-Pin DO-214AC (SMA), PMDS
ROHM

Product Information

Nominal Zener Voltage:
7.7V
Dimensions:
4.7 x 2.8 x 2.2mm
Mounting Type:
Surface Mount
Power Dissipation:
1W
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
20µA
Maximum Zener Impedance:
6Ω
Height:
2.2mm
Width:
2.8mm
Length:
4.7mm
Zener Type:
Voltage Regulator
Number of Elements per Chip:
1
Maximum Power Dissipation:
1 W
Package Type:
DO-214AC (SMA), PMDS
Diode Configuration:
Single
Pin Count:
2
Test Current:
40mA
RoHs Compliant
Checking for live stock

This is Zener Diode 7.7V 1 W SMT 2-Pin DO-214AC (SMA) PMDS manufactured by ROHM. The manufacturer part number is PTZTE256.8B. Its nominal Zener voltage is 7.7v. The given dimensions of the product include 4.7 x 2.8 x 2.2mm. The product is available in surface mount configuration. It has about 1w power dissipation . It has a maximum operating temperature of +150 °c. The product has a maximum 20µa of reverse leakage current. While it has 6ω of maximum Zener impedance. In addition, the height is 2.2mm. Furthermore, the product is 2.8mm wide. Its accurate length is 4.7mm. The Zener is a type of voltage regulator Zener with unique features. It consists of 1 elements per chip. Provides up to 1 w maximum power dissipation. The package is a sort of do-214ac (sma), pmds. The diode features a single configuration. It contains 2 pins. In addition, it has 40ma test current.

pdf icon
Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search PTZTE256.8B on website for other similar products.
We accept all major payment methods for all products including ET16782102. Please check your shopping cart at the time of order.
You can order ROHM brand products with PTZTE256.8B directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of ROHM Zener Diode, 7.7V 1 W SMT 2-Pin DO-214AC (SMA), PMDS. You can also check on our website or by contacting our customer support team for further order details on ROHM Zener Diode, 7.7V 1 W SMT 2-Pin DO-214AC (SMA), PMDS.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16782102 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "ROHM" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16782102.
Yes. We ship PTZTE256.8B Internationally to many countries around the world.
