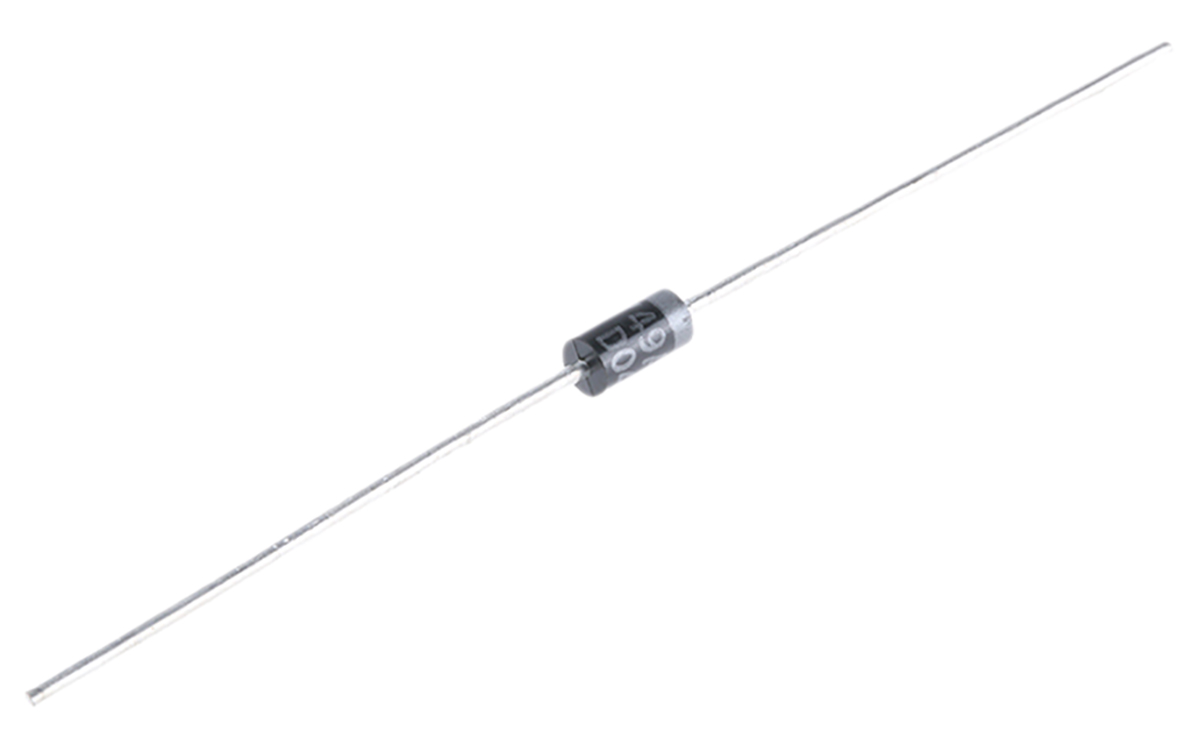

Taiwan Semi Zener Diode, 24V 5% 1 W Through Hole 2-Pin DO-41

1N4749A-R0 Taiwan Semi Zener Diode, 24V 5% 1 W Through Hole 2-Pin DO-41
Taiwan Semiconductor

Product Information

Nominal Zener Voltage:
24V
Dimensions:
5.2 x 2.7 x 2.7mm
Mounting Type:
Through Hole
Maximum Zener Impedance:
25Ω
Maximum Operating Temperature:
+200 °C
Maximum Reverse Leakage Current:
5µA
Maximum Power Dissipation:
1 W
Package Type:
DO-41
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
10.5mA
RoHs Compliant
Checking for live stock

This is Taiwan Semi Zener Diode 24V 5% 1 W Through Hole 2-Pin DO-41 manufactured by Taiwan Semiconductor. The manufacturer part number is 1N4749A R0. Its nominal Zener voltage is 24v. The given dimensions of the product include 5.2 x 2.7 x 2.7mm. The product is available in through hole configuration. While it has 25ω of maximum Zener impedance. It has a maximum operating temperature of +200 °c. The product has a maximum 5µa of reverse leakage current. Provides up to 1 w maximum power dissipation. The package is a sort of do-41. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of voltage regulator Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 10.5ma test current.

pdf icon
1N4740A - 1M200Z Glass Passivated Junction Silicon Zener Diode Data Sheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 1N4749A R0 on website for other similar products.
We accept all major payment methods for all products including ET16768714. Please check your shopping cart at the time of order.
You can order Taiwan Semiconductor brand products with 1N4749A R0 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Taiwan Semi Zener Diode, 24V 5% 1 W Through Hole 2-Pin DO-41. You can also check on our website or by contacting our customer support team for further order details on Taiwan Semi Zener Diode, 24V 5% 1 W Through Hole 2-Pin DO-41.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16768714 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Taiwan Semiconductor" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16768714.
Yes. We ship 1N4749A R0 Internationally to many countries around the world.
