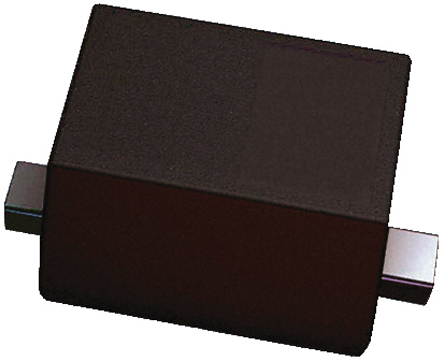

Diodes Inc Zener Diode, 5.6V ±2% 350 mW SMT 2-Pin SOD-523

BZT585B5V6T-7 Diodes Inc Zener Diode, 5.6V ±2% 350 mW SMT 2-Pin SOD-523
DiodesZetex

Product Information

Nominal Zener Voltage:
5.6V
Dimensions:
1.3 x 0.9 x 0.65mm
Mounting Type:
Surface Mount
Forward Current:
200mA
Typical Voltage Temperature Coefficient:
1mV/°C
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
1µA
Maximum Zener Impedance:
400Ω
Forward Voltage:
1.1V
Package Type:
SOD-523
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Maximum Power Dissipation:
350 mW
Zener Type:
Precision
Zener Voltage Tolerance:
±2%
Diode Configuration:
Single
Pin Count:
2
Test Current:
5mA
RoHs Compliant
Checking for live stock

This is Diodes Inc Zener Diode 5.6V ±2% 350 mW SMT 2-Pin SOD-523 manufactured by DiodesZetex. The manufacturer part number is BZT585B5V6T-7. Its nominal Zener voltage is 5.6v. The given dimensions of the product include 1.3 x 0.9 x 0.65mm. The product is available in surface mount configuration. It features 200ma forward current. The product has a typical 1mv/°c voltage temperature coefficient . It has a maximum operating temperature of +150 °c. The product has a maximum 1µa of reverse leakage current. While it has 400ω of maximum Zener impedance. The forward voltage is 1.1v. The package is a sort of sod-523. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. Provides up to 350 mw maximum power dissipation. The Zener is a type of precision Zener with unique features. It has ±2% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 5ma test current.

pdf icon
BZT585B2V4T - BZT585B43T, Surface Mount Precision Zener Diode(Technical Reference)
