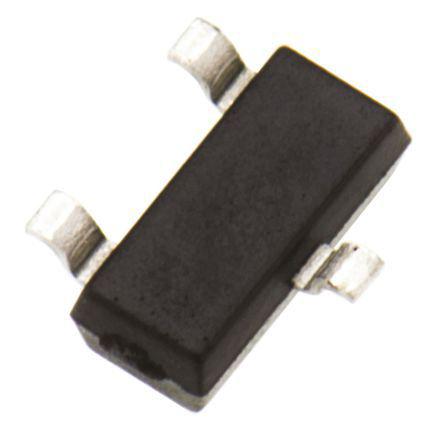

Vishay Zener Diode, 3V ±5% 350 mW SMT 3-Pin SOT-23

MMBZ4683-E3-08 Vishay Zener Diode, 3V ±5% 350 mW SMT 3-Pin SOT-23
MMBZ4683-E3-08
Vishay

Product Information

Nominal Zener Voltage:
3V
Dimensions:
3.1 x 1.43 x 1.15mm
Mounting Type:
Surface Mount
Forward Current:
10mA
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
800nA
Maximum Power Dissipation:
350 mW
Forward Voltage:
0.9V
Package Type:
SOT-23
Number of Elements per Chip:
1
Minimum Operating Temperature:
-55 °C
Zener Type:
General Purpose
Zener Voltage Tolerance:
±5%
Diode Configuration:
Single
Pin Count:
3
Test Current:
0.05mA
RoHs Compliant
Checking for live stock

This is Zener Diode 3V ±5% 350 mW SMT 3-Pin SOT-23 manufactured by Vishay. The manufacturer part number is MMBZ4683-E3-08. Its nominal Zener voltage is 3v. The given dimensions of the product include 3.1 x 1.43 x 1.15mm. The product is available in surface mount configuration. It features 10ma forward current. It has a maximum operating temperature of +150 °c. The product has a maximum 800na of reverse leakage current. Provides up to 350 mw maximum power dissipation. The forward voltage is 0.9v. The package is a sort of sot-23. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -55 °c. The Zener is a type of general purpose Zener with unique features. It has ±5% Zener voltage tolerance. The diode features a single configuration. It contains 3 pins. In addition, it has 0.05ma test current.

pdf icon
Small Signal Zener Diodes Datasheet(Technical Reference)
pdf icon
ESD Control Selection Guide V1(Technical Reference)
