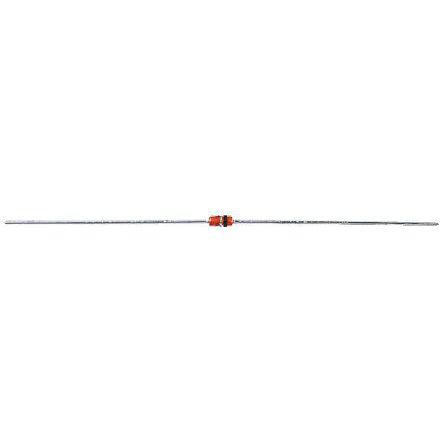

Vishay Zener Diode, 17V 5% 500 mW Through Hole 2-Pin DO-35

1N5247B-TR Vishay Zener Diode, 17V 5% 500 mW Through Hole 2-Pin DO-35
Vishay

Product Information

Diameter:
1.7mm
Dimensions:
1.7 (Dia.) x 3.9mm
Mounting Type:
Through Hole
Nominal Zener Voltage:
17V
Typical Voltage Temperature Coefficient:
0.084%/K
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
100nA
Maximum Zener Impedance:
19Ω
Length:
3.9mm
Zener Type:
General Purpose
Number of Elements per Chip:
1
Maximum Power Dissipation:
500 mW
Package Type:
DO-35
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
7.4mA
RoHs Compliant
Checking for live stock

This is Zener Diode 17V 5% 500 mW Through Hole 2-Pin DO-35 manufactured by Vishay. The manufacturer part number is 1N5247B-TR. Its diameter is 1.7mm. The given dimensions of the product include 1.7 (dia.) x 3.9mm. The product is available in through hole configuration. Its nominal Zener voltage is 17v. The product has a typical 0.084%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum 100na of reverse leakage current. While it has 19ω of maximum Zener impedance. Its accurate length is 3.9mm. The Zener is a type of general purpose Zener with unique features. It consists of 1 elements per chip. Provides up to 500 mw maximum power dissipation. The package is a sort of do-35. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 7.4ma test current.

pdf icon
1N5221B to 1N5267B Small Signal Zener Diodes(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search 1N5247B-TR on website for other similar products.
We accept all major payment methods for all products including ET16721569. Please check your shopping cart at the time of order.
You can order Vishay brand products with 1N5247B-TR directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay Zener Diode, 17V 5% 500 mW Through Hole 2-Pin DO-35. You can also check on our website or by contacting our customer support team for further order details on Vishay Zener Diode, 17V 5% 500 mW Through Hole 2-Pin DO-35.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET16721569 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET16721569.
Yes. We ship 1N5247B-TR Internationally to many countries around the world.
