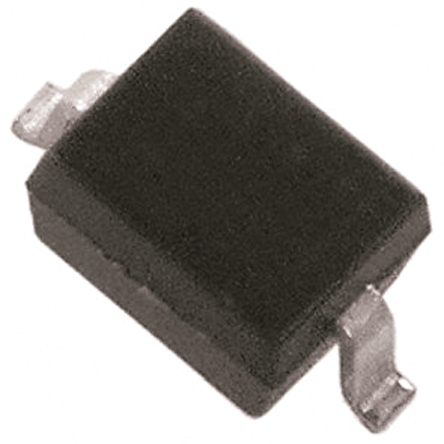

Diodes Inc Zener Diode, 12V 5% 200 mW SMT 2-Pin SOD-323

DDZ9699S-7 Diodes Inc Zener Diode, 12V 5% 200 mW SMT 2-Pin SOD-323
DiodesZetex

Product Information

Nominal Zener Voltage:
12V
Dimensions:
1.8 x 1.4 x 1.1mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
200 mW
Maximum Operating Temperature:
+150 °C
Maximum Reverse Leakage Current:
50nA
Package Type:
SOD-323
Number of Elements per Chip:
1
Minimum Operating Temperature:
-65 °C
Zener Type:
General Purpose
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
0.05mA
RoHs Compliant
Checking for live stock

This is Diodes Inc Zener Diode 12V 5% 200 mW SMT 2-Pin SOD-323 manufactured by DiodesZetex. The manufacturer part number is DDZ9699S-7. Its nominal Zener voltage is 12v. The given dimensions of the product include 1.8 x 1.4 x 1.1mm. The product is available in surface mount configuration. Provides up to 200 mw maximum power dissipation. It has a maximum operating temperature of +150 °c. The product has a maximum 50na of reverse leakage current. The package is a sort of sod-323. It consists of 1 elements per chip. Whereas, the minimum operating temperature of the product is -65 °c. The Zener is a type of general purpose Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 0.05ma test current.

pdf icon
DDZ9689S-7 Precision Zener Diode Data Sheet(Technical Reference)

Reviews

  • Be the first to review.
Don’t hesitate to ask questions for better clarification.

FAQs

Yes. You can also search DDZ9699S-7 on website for other similar products.
We accept all major payment methods for all products including ET14157693. Please check your shopping cart at the time of order.
You can order DiodesZetex brand products with DDZ9699S-7 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Diodes Inc Zener Diode, 12V 5% 200 mW SMT 2-Pin SOD-323. You can also check on our website or by contacting our customer support team for further order details on Diodes Inc Zener Diode, 12V 5% 200 mW SMT 2-Pin SOD-323.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14157693 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "DiodesZetex" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14157693.
Yes. We ship DDZ9699S-7 Internationally to many countries around the world.
