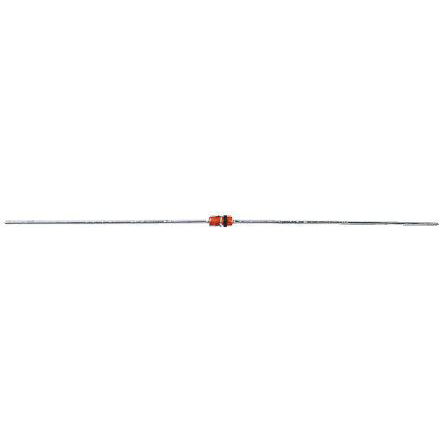

Vishay Zener Diode, 22V 2% 500 mW Through Hole 2-Pin DO-35

TZX22B-TR Vishay Zener Diode, 22V 2% 500 mW Through Hole 2-Pin DO-35
Vishay

Product Information

Nominal Zener Voltage:
22V
Dimensions:
1.7 (Dia.) x 3.9mm
Mounting Type:
Through Hole
Maximum Zener Impedance:
65Ω
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
1µA
Maximum Power Dissipation:
500 mW
Package Type:
DO-35
Number of Elements per Chip:
1
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
2%
Diode Configuration:
Single
Pin Count:
2
Test Current:
2mA
RoHs Compliant
Checking for live stock

This is Zener Diode 22V 2% 500 mW Through Hole 2-Pin DO-35 manufactured by Vishay. The manufacturer part number is TZX22B-TR. Its nominal Zener voltage is 22v. The given dimensions of the product include 1.7 (dia.) x 3.9mm. The product is available in through hole configuration. While it has 65ω of maximum Zener impedance. It has a maximum operating temperature of +175 °c. The product has a maximum 1µa of reverse leakage current. Provides up to 500 mw maximum power dissipation. The package is a sort of do-35. It consists of 1 elements per chip. The Zener is a type of voltage regulator Zener with unique features. It has 2% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 2ma test current.

pdf icon
TZX-Series, Small Signal Zener Diodes(Technical Reference)
