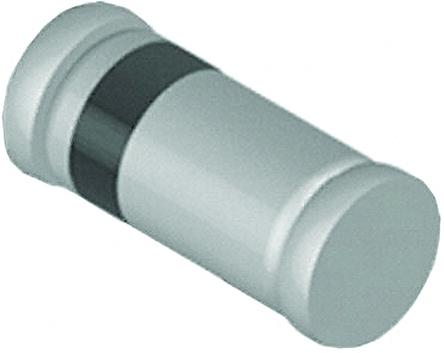

Vishay Zener Diode, 12V 5% 500 mW SMT 2-Pin SOD-80

TZS4699-GS08 Vishay Zener Diode, 12V 5% 500 mW SMT 2-Pin SOD-80
Vishay

Product Information

Nominal Zener Voltage:
12V
Dimensions:
3.7 x 1.6 x 1.6mm
Mounting Type:
Surface Mount
Maximum Power Dissipation:
500 mW
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
50nA
Package Type:
SOD-80
Number of Elements per Chip:
1
Zener Type:
Voltage Regulator
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
0.05mA
RoHs Compliant
Checking for live stock

This is Zener Diode 12V 5% 500 mW SMT 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is TZS4699-GS08. Its nominal Zener voltage is 12v. The given dimensions of the product include 3.7 x 1.6 x 1.6mm. The product is available in surface mount configuration. Provides up to 500 mw maximum power dissipation. It has a maximum operating temperature of +175 °c. The product has a maximum 50na of reverse leakage current. The package is a sort of sod-80. It consists of 1 elements per chip. The Zener is a type of voltage regulator Zener with unique features. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 0.05ma test current.

pdf icon
ESD Control Selection Guide V1(Technical Reference)
pdf icon
TZS4678 to TZS4717, Small Signal Zener Diodes(Technical Reference)
