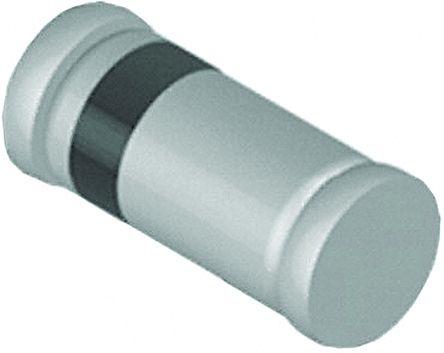

Vishay Zener Diode, 14V 5% 500 mW SMT 2-Pin SOD-80

TZQ5244B-GS08 Vishay Zener Diode, 14V 5% 500 mW SMT 2-Pin SOD-80
Vishay

Product Information

Nominal Zener Voltage:
14V
Dimensions:
3.7 x 1.6 x 1.6mm
Mounting Type:
Surface Mount
Maximum Zener Impedance:
15Ω
Typical Voltage Temperature Coefficient:
0.082%/K
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
100nA
Maximum Power Dissipation:
500 mW
Height:
1.6mm
Width:
1.6mm
Length:
3.7mm
Zener Type:
Voltage Regulator
Number of Elements per Chip:
1
Package Type:
SOD-80
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
9mA
RoHs Compliant
Checking for live stock

This is Zener Diode 14V 5% 500 mW SMT 2-Pin SOD-80 manufactured by Vishay. The manufacturer part number is TZQ5244B-GS08. Its nominal Zener voltage is 14v. The given dimensions of the product include 3.7 x 1.6 x 1.6mm. The product is available in surface mount configuration. While it has 15ω of maximum Zener impedance. The product has a typical 0.082%/k voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum 100na of reverse leakage current. Provides up to 500 mw maximum power dissipation. In addition, the height is 1.6mm. Furthermore, the product is 1.6mm wide. Its accurate length is 3.7mm. The Zener is a type of voltage regulator Zener with unique features. It consists of 1 elements per chip. The package is a sort of sod-80. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 9ma test current.

pdf icon
TZQ5221B to TZQ5267B, Small Signal Zener Diodes(Technical Reference)

Reviews

  • Be the first to review.

FAQs

Yes. You can also search TZQ5244B-GS08 on website for other similar products.
We accept all major payment methods for all products including ET14080743. Please check your shopping cart at the time of order.
You can order Vishay brand products with TZQ5244B-GS08 directly through our website or call us at +44 (0) 3303 800 157 or email our support team at sales@enrgtech.co.uk.
Yes. Our products in Zener Diodes category are shipped in lowest possible time.
You will get a confirmation email regarding your order of Vishay Zener Diode, 14V 5% 500 mW SMT 2-Pin SOD-80. You can also check on our website or by contacting our customer support team for further order details on Vishay Zener Diode, 14V 5% 500 mW SMT 2-Pin SOD-80.
We use our internationally recognized delivery partners UPS/DHL. Collection of ET14080743 can also be arranged for the customer by international shipments through contacting our customer support team. Additionally, you can also search "Vishay" products on our website by using Enrgtech's Unique Manufacturing Part Number ET14080743.
Yes. We ship TZQ5244B-GS08 Internationally to many countries around the world.
