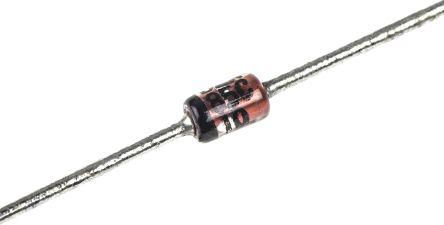

Magnatec Zener Diode, 10V 5% 1.3 W Through Hole 2-Pin DO-41

BZX85C10V Magnatec Zener Diode, 10V 5% 1.3 W Through Hole 2-Pin DO-41
BZX85C10V
Magnatec

Product Information

Diameter:
2.5mm
Dimensions:
2.5 (Dia.) x 4.1mm
Mounting Type:
Through Hole
Nominal Zener Voltage:
10V
Typical Voltage Temperature Coefficient:
0.04 %/°C, 0.08 %/°C
Maximum Operating Temperature:
+175 °C
Maximum Reverse Leakage Current:
0.5µA
Maximum Zener Impedance:
200Ω
Length:
4.1mm
Zener Type:
Voltage Regulator
Number of Elements per Chip:
1
Maximum Power Dissipation:
1.3 W
Package Type:
DO-41
Zener Voltage Tolerance:
5%
Diode Configuration:
Single
Pin Count:
2
Test Current:
25mA
RoHs Compliant
Checking for live stock

This is Zener Diode 10V 5% 1.3 W Through Hole 2-Pin DO-41 manufactured by Magnatec. The manufacturer part number is BZX85C10V. Its diameter is 2.5mm. The given dimensions of the product include 2.5 (dia.) x 4.1mm. The product is available in through hole configuration. Its nominal Zener voltage is 10v. The product has a typical 0.04 %/°c, 0.08 %/°c voltage temperature coefficient . It has a maximum operating temperature of +175 °c. The product has a maximum 0.5µa of reverse leakage current. While it has 200ω of maximum Zener impedance. Its accurate length is 4.1mm. The Zener is a type of voltage regulator Zener with unique features. It consists of 1 elements per chip. Provides up to 1.3 w maximum power dissipation. The package is a sort of do-41. It has 5% Zener voltage tolerance. The diode features a single configuration. It contains 2 pins. In addition, it has 25ma test current.

pdf icon
BZX85C Series Zener Diode Data Sheet(Technical Reference)
